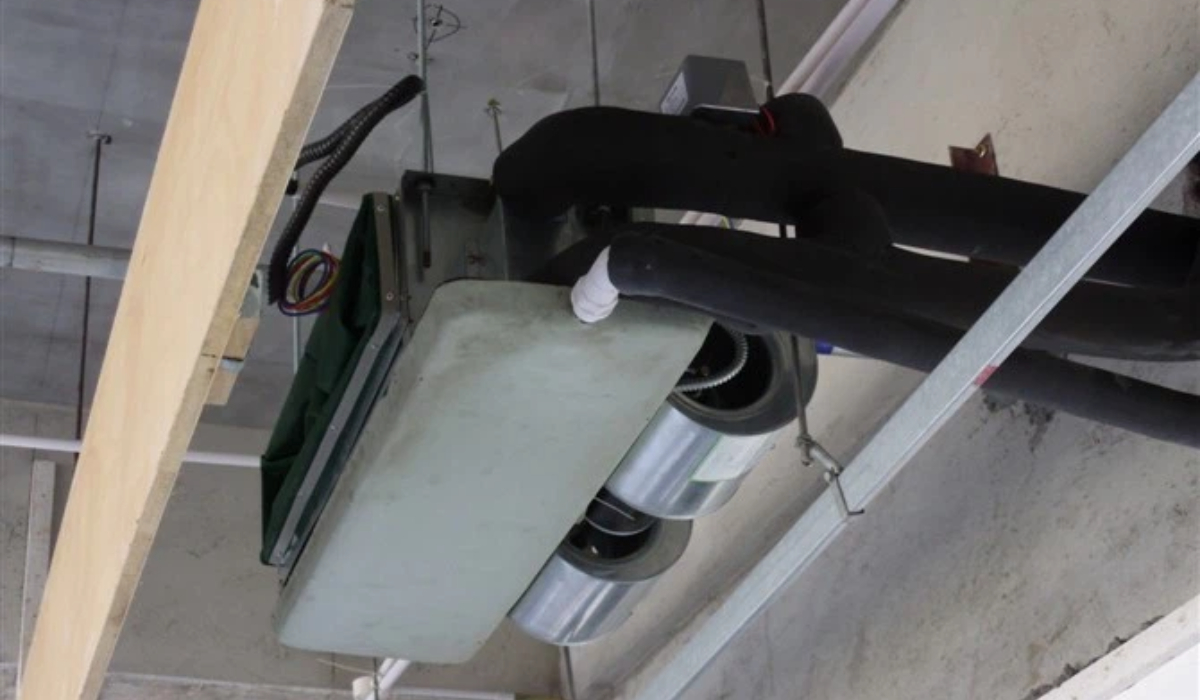

Ceiling Mounted Fan Coil Unit
※Ultra-efficient
Energy efficiency exceeds the national standard by more than 15%
※Low noise
The noise is 1 to 2dB lower than the national standard
※Large air volume
It has a wide range of air volume, with a maximum air output of 3400m ³ /h
※More beautiful
With a national patent for appearance, the unit is lightweight and aesthetically pleasing as a whole
※High cost performance
A wide variety, customizable, and with an extremely high cost performance
FCU product

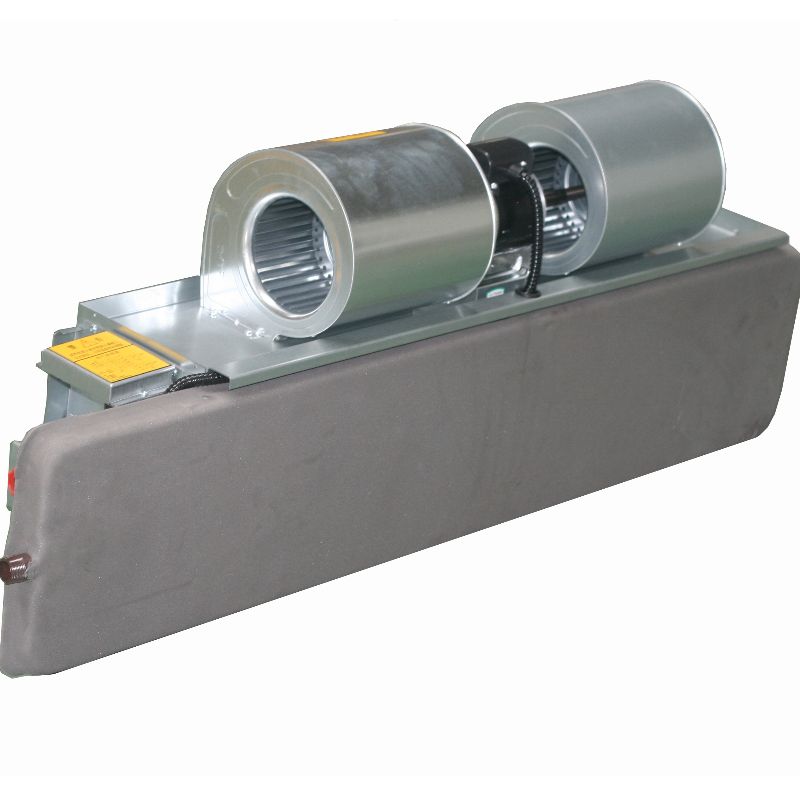

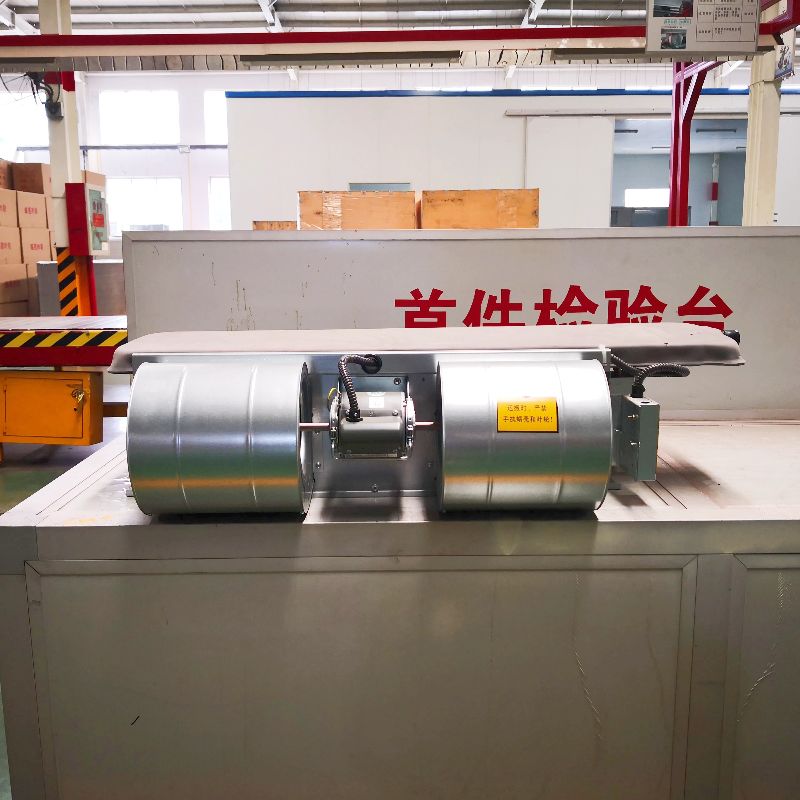

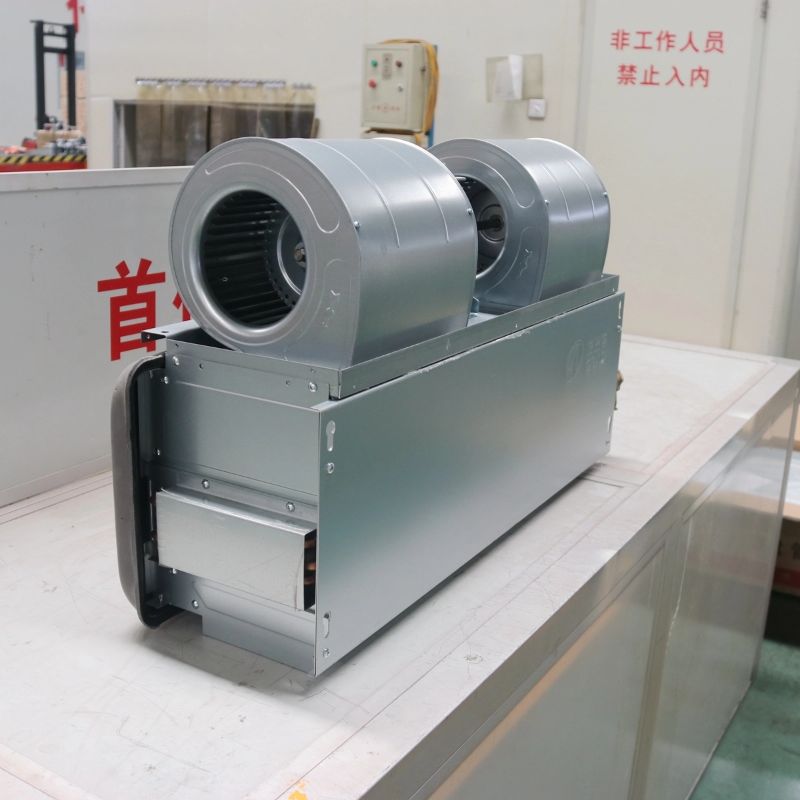

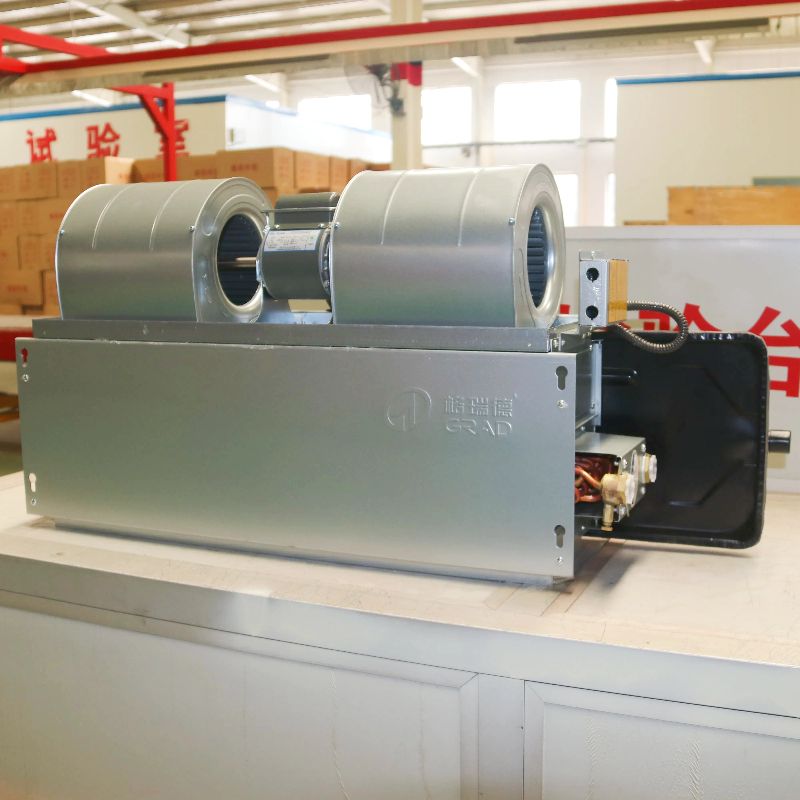

GRAD Ceiling Mounted Fan Coil Unit mainly consists of centrifugal fan and heat exchanger etc., which is one of the terminals in the central air conditioning system. It has been widely applied in air conditioning occasions of civil or industrial buildings with large space or of multiple rooms like hotel, restaurant, factory, exhibition hall, shopping mall and office buildings.
It can meet the requirements of cooling, dehumidification and heating etc., which can create a fresh, quiet and year-round balmy working and living conditions.
Introduction
FCU improved the performance after optimized design;There are high efficiency type and standard type.The standard FCU can meet the national standard parameters;And the high efficiency FCU can meet the parameters higher 20% than national standard
Why choose GRAD fan coil unit?
1.30+ years manufacturer.
2.AHRI & CE certified.
3.1500sets/day production capacity to guarantee timely delivery.
4.Fast reaction for after-sales problem.
5.Multiple types with various models to meet customization requirements.
6.Patent appearance design.
7.Production and sales integration, better understand market requirements to offer OEM/ODM service.
8.Factory direct sales to offer cost-effective product.

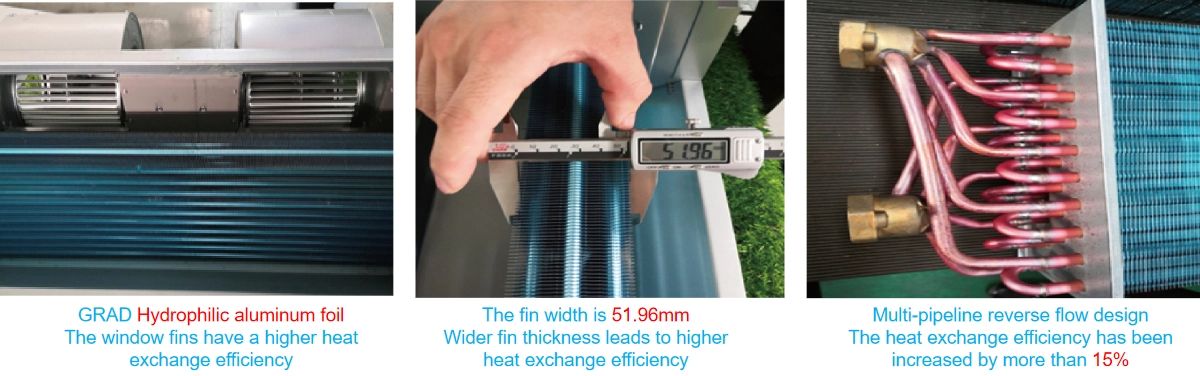

| Model No. | FP-34 | FP-51 | FP-68 | FP-85 | FP-102 | FP-136 | FP-170 | FP-204 | FP-238 | FP-272WAG | |
| Qty. | 23 | 10 | 4 | 25 | 11 | 37 | 82 | 21 | 99 | 33 | |
| Air Volume (m³/h) | 340 | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | 2380 | 2720 | |
| Cooling Capacity (kw) | 2.15 | 3.35 | 3.95 | 5.05 | 5.95 | 7.45 | 9.25 | 10.95 | 12.85 | 15.7 | |
| Heating Capacity (Kw) | 3.7 | 5.5 | 6.7 | 8.4 | 9.8 | 12.8 | 15.9 | 19.2 | 21.4 | 23.55 | |
| ESP(Pa) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 125 | |
| Power Supply | 220V/1PH/60Hz | ||||||||||
| Power Input (W) | 48 | 64 | 81 | 97 | 114 | 169 | 204 | 243 | 291 | 520 | |
| Dimension尺寸 (L*W*D) mm | 730*520*230 | 880*520*230 | 980*520*230 | 1080*520*230 | 1200*520*230 | 1500*520*230 | 1660*520*230 | 1830*520*230 | 1940*520*230 | 1500*597*331 | |
| Air Outlet Size(mm) | 470*130 | 620*130 | 700*130 | 820*130 | 940*130 | 1240*130 | 1400*130 | 1580*130 | 1720*130 | 1240*230 | |
| Cooling coil | Copper pipe & aluminum fins | ||||||||||
| Cooling coil system | 2-pipe system, with heating & cooling | ||||||||||
| Copper Tube Diameter | φ7mm | φ7mm | φ7mm | φ7mm | φ7mm | φ7mm | φ7mm | φ7mm | φ7mm | φ9.52mm | |
| Copper Tube Thickness | 0.28 mm | ||||||||||
| Fins Thickness | 0.095 mm | ||||||||||
| Fins Distance | 1.9mm | 2.2 mm | |||||||||
| No. of Fins | 247 | 326 | 368 | 431 | 494 | 652 | 736 | 831 | 905 | 564 | |
| Air return box | Back return | ||||||||||
| Air Return Sheet Thickness | 0.75 mm Galvanized Sheet 0.75mm | ||||||||||
| Fans (QTY) | 1 | 2 | 2 | 2 | 2 | 3 | 4 | 4 | 4 | 3 | |
| Motors (SET) | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | |
| Noise (dB) | 42 | 44 | 46 | 47 | 49 | 50 | 52 | 54 | 56 | 56 | |
| Water Plate | Iron plate with paiting and insulated | ||||||||||
| Inlet and Outlet water pipe | 1" (DN20) internal thread ，DN20 | 1" (DN25) internal thread | |||||||||
| Condensate pipe | 3/4" (DN20) internal thread ，DN20 | ||||||||||
| Control type | 3-speed button controller with RS485 | ||||||||||
