Air Cooled Water Chiller

1.It can operate stably in an ultra-low temperature environment of -35℃

2. Precise frost measurement, rapid defrosting, reduced defrosting frequency, and shortened defrosting time

3. Mobile APP operation, fault warning, and online diagnosis

4. It operates efficiently within an ultra-wide ambient temperature range of -35℃ to 43℃

5. COPh > 2.6 exceeds the national standard energy efficiency limit value, and IPLV(H) exceeds the national standard first-level energy efficiency

Contact Now E-Mail Telephone WhatsApp

Product Details

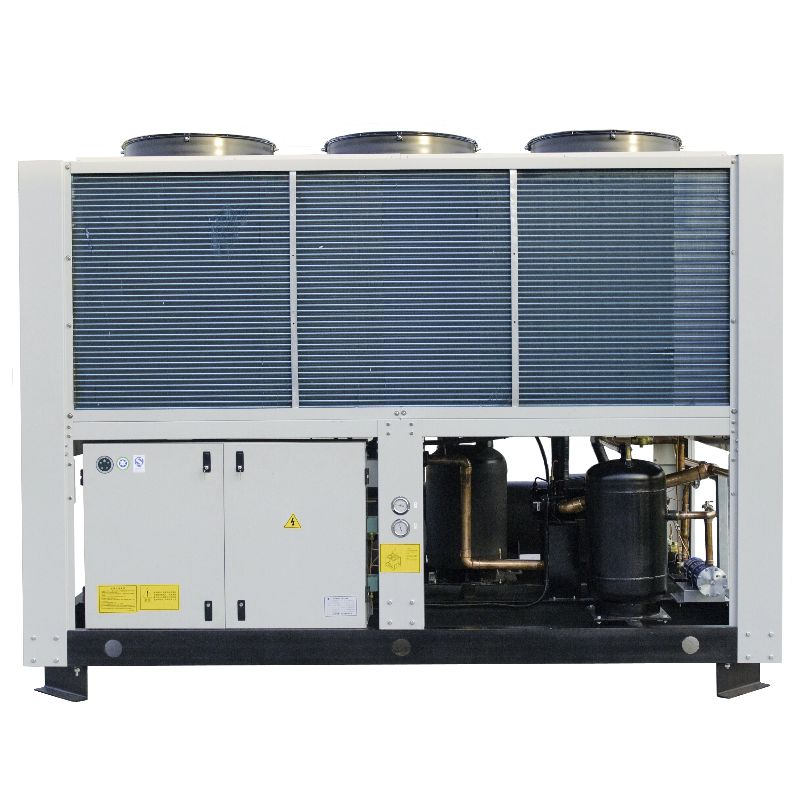

Air Cooled Water Chiller

Air Cooled Water Chiller is based on air as a cold (hot) source, water as a refrigerant, it can be cooling and heating, and can run all year round, with environmental protection, energy saving, comfortable, stable characteristics.

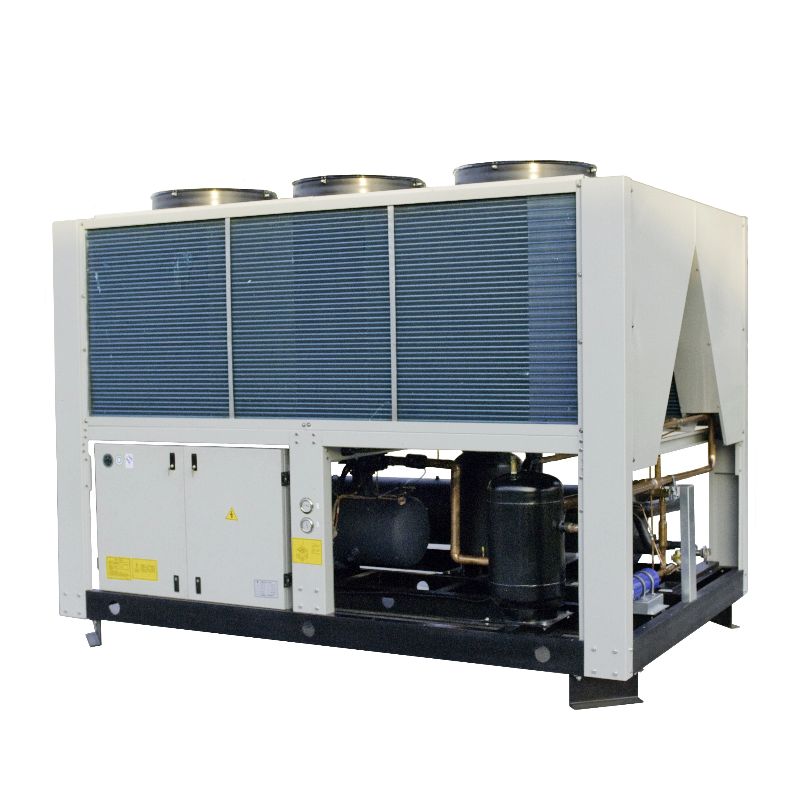

Air Cooled Water Chiller

The GRAD Air source heat pump unit is equipped with a self-developed NB-iot Internet of Things remote intelligent control module. It can be operated via a mobile phone APP and does not require dedicated personnel to stand by. It also features fault prediction Warning alerts and online diagnosis. It can operate efficiently in an ambient temperature range of -30 ° C to 43 ° C, with a maximum water outlet temperature of 60 ° C. It comes in various terminal forms and is suitable for radiators and floors Radiation, central air conditioning for cooling and heating. The national patented intelligent defrosting technology accurately detects frost, quickly defrosts, significantly reduces the frequency of defrosting, and greatly shortens the defrosting time. In addition, this unit also has unique advantages such as modular customization, no need to build a machine room, environmental protection and energy conservation, high efficiency and low noise, and wide application range.

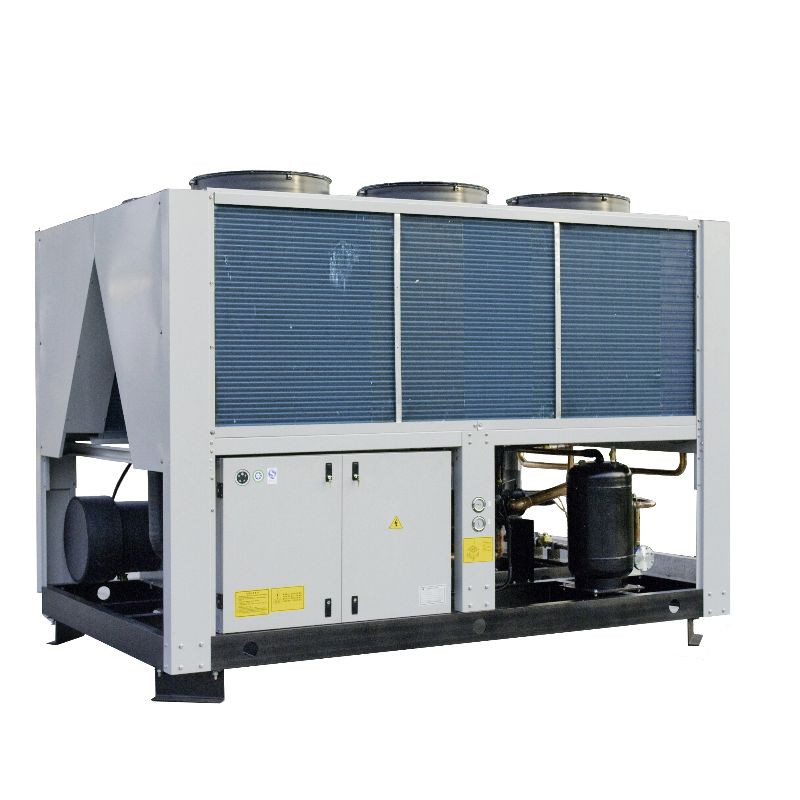

Air Cooled Water Chiller

Technical parameter table of air cooled screw cold (hot) water chiller R407C
Unit Model			LSA050	LSA060	LSA080	LSA100	LSA120	LSA140	LSA160	LSA180	LSA200	LSA220	LSAD160	LSAD180	LSAD200	LSAD220	LSAD240	LSAD280	LSAD320
Unit Model			LSA050H	LSA060H	LSA080H	LSA100H	LSA120H	LSA140H	LSA160H	LSA180H	LSA200H	LSA220H	LSAD160H	LSAD180H	LSAD200H	LSAD220H	LSAD240H	LSAD280H	LSAD320H
Nominal cooling capacity		KW	170	210	280	350	420	490	560	630	680	760	560	630	700	750	840	980	1120
Cooling input poer		KW	53	66	88	109	131	153	175	197	213	238	175	197	219	234	263	306	350
Nominal heating capacity		KW	187	21	308	385	462	539	616	693	748	836	616	693	770	825	924	1078	1232
Heating input power		KW	55	68	91	113	136	159	181	204	220	246	181	204	226	243	272	317	362
power supply			3-380V-50HZ
Starting mode			Y-∆
Energy control			25%-100%										12.5%-100%
Compressor	Type		Semi-closed screw type
Compressor	Quantity		1										2
Condenser	Type		copper-tube and aluminum-fin type
Evaporator	Type		Shell and tube type
	Water resistance	KPa	70-90
	Fouling factor	℃/KW	0.018
	Water pipe diameter	DN	80	100	100	100	125	150	150	150	150	150	150	150	150	150	150	200	200
	Water flow	m3/h	32.2	39.7	53	66.2	79.5	92.7	106	119.2	128.7	143.8	96.3	108.4	120.4	129	144.5	168.6	192.6
Condenser fan	Type		Axial-flow type
	Quantity	Unit	4	6	6	8	8	8	8	10	10	10	12	12	16	16	16	16	16
	Input poer	KW	1.1×4	0.75×6	1.1×6	1.1×8	1.5×8	2.2×8	2.2×8	2.2×10	2.2×10	2.2×10	1.1×12	1.5×12	1.5×12	1.5×16	1.5×16	2.2×16	2.2×16
	Air volume	m3/h	14650×4	13260×6	14650×6	14650×8	16270×8	21000×8	21000×8	21000×10	21000×10	25000×10	14650×12	16270×12	14650×16	16270×16	16270×16	21000×16	21000×16
Noise		dB(A）	77	78	78	79	79	80	81	83	83	85	81	82	82	82	83	84	85
Overall dimension	Length	mm	2280	3370	3370	4100	4100	4620	4620	6100	6100	6100	6540	6540	8000	8000	8000	9000	9000
	Width	mm	2250
	Height	mm	2410	2410	2410	2410	2410	2600	2600	2600	2600	2600	2410	2410	2450	2450	2450	2650	2650
unit weight		kg	2500	3500	3700	4500	4700	5100	5500	6200	6250	6300	7000	7200	8800	9000	9200	11000	12000
Operating weight		kg	2625	3675	3885	4725	4935	5355	5775	6510	6562	6615	7350	7560	9240	9450	9660	11560	12600

About us

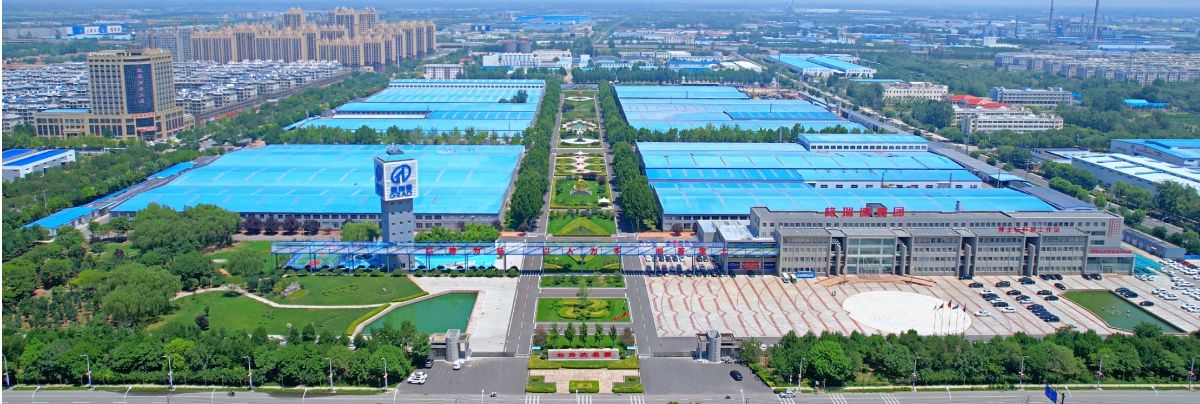

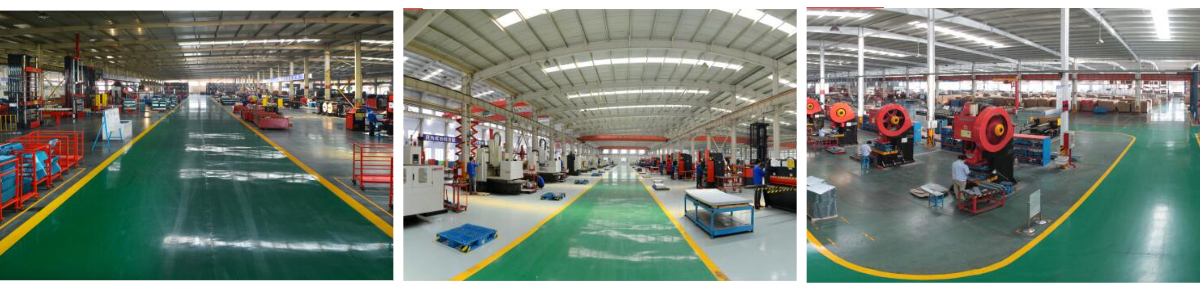

Shandong GRAD Group Co., Ltd. is a leading global manufacturer specializing in HVAC (Heating, Ventilation, and Air Conditioning) solutions. With over 30 years of production experienceand 16+ years in international business, we have built a strong reputation for innovation, reliability, and excellence. Our products are exported to 100+ countries, demonstrating our commitment to quality and customer satisfaction worldwide. Operating from a 500,000 sqm state-of-the-art production facility, we employ 2,000+ skilled professionals dedicated to delivering cutting-edge HVAC technologies. GRAD Group holds 1,000+ patents, underscoring our leadership in R&D and technological advancement. Whether for commercial, or industrial applications, we provide energy-efficient, sustainable, and high-performance HVAC solutions tailored to global market needs. Why Choose GRAD?
