Hydro Water Chiller

1.The heat exchange efficiency is increased by 10%, the refrigerant charge is reduced by 27%, and the volume of the unit can be effectively reduced by more than 20%

2. Remote intelligent services

3. Applicable to multiple scenarios and working conditions

4. Low operation and maintenance costs

5. The falling film evaporation technology has been granted a national patent

Contact Now E-Mail Telephone WhatsApp

Product Details

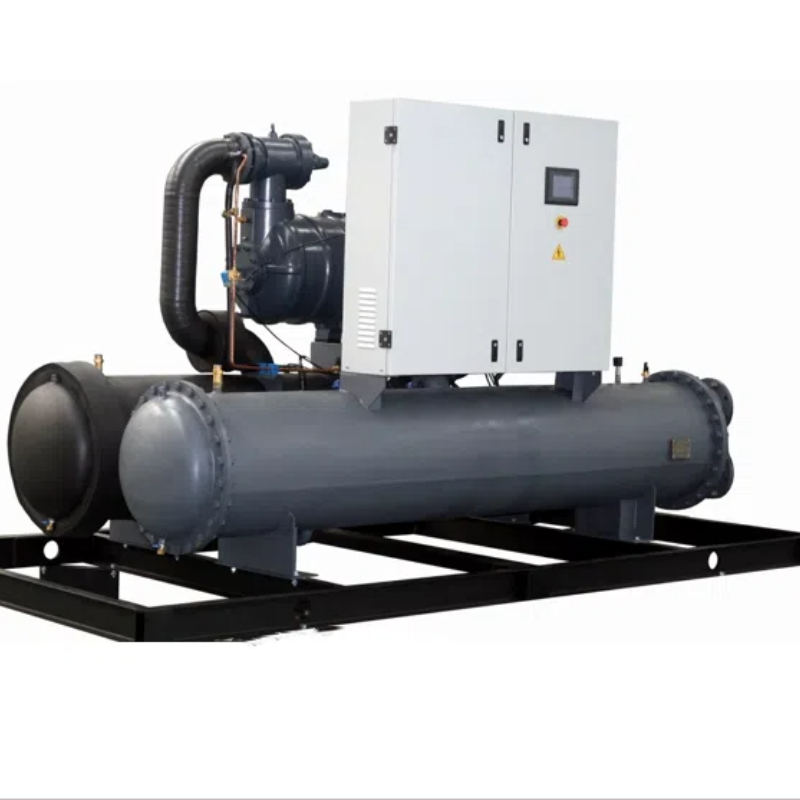

Hydro Water Chiller

Hydro Water Chiller is a unit adopting the cooling tower cooling refrigerant circulatory system to exchange heat and then to get the air

conditioning and process chilled water. It works together with the terminal devices to complete the whole air conditioning system.

Test ability, technical level

1.GRAD has the National Laboratory of Air Conditioning Products recognized by CNAS, which is used for the design, development and experimental research of water-cooled chiller and the factory test of products.

2.Strict factory product quality control, so that users can buy at ease, with satisfaction.

3.GRAD screw type water cooled chiller series products ware tested by the national air conditioning quality testing center, the technical performance indicators are higher than GB/T184330.1-2007"Vapor compression cycle cold water (heat pump) unit Part 1: Industrial or commercial and similar uses of cold water (heat pump) units "standard, product quality is stable, reliable operation, has been praised by the majority of users at home and abroad.

Applications:

Comfort air conditioning systems: large supermarkets or commercial complexes, hotels, shopping malls, office buildings, exhibition halls, airports, stadiums, etc.

Process air conditioning systems: electronics, biology, light textile, chemical engineering, metallurgy, pharmaceuticals, power, machinery, etc.

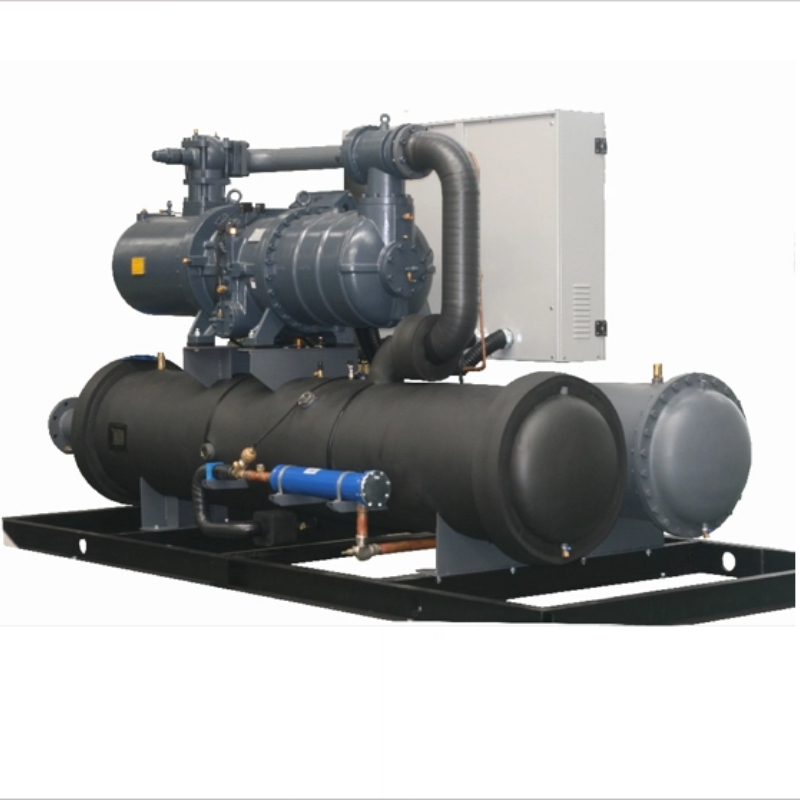

Hydro Water Chiller

Components

1. Semihermetic screw refrigeration compressor, with simpler structure, even and continuous inlet and exhaust air, small running shock, high stability and long life span.

2. Shell & tube evaporator and condenser

3. Expansion valve: electronic expansion valve control system can meet as much as 2600 steps control precision, which can make the unit keep optimal condition.

4. All the assembly work will be finished in the factory and the unit can be delivered after qualified operation and trial test.

5. Microcomputer control system.

A partial parameter table of water-cooled screw chiller R22
Unit Model			LSW055	LSW110	LSW180	LSW250	LSW300	LSWD110	LSWD180	LSWD240	LSWD320	LSWD380	LSWD540	LSWF560	LSWF600	LSWF720	LSWF920	LSWF1000
Refrigeration capacity		KW	193	387	630	880	1055	386	634	844	1126	774	1899	1960	2110	253	3240	3517
power supply			3N-50HZ 380V
Starting mode			Y-∆ or shunt winding
Energy control			25%-100%					12.5%-100%						6.25%-100%
Compressor	Type		Semi-closed screw type
	Quantity		1					2						4
	Power input for refrigeration	KW	40.8	82.3	131.3	104.5	215.5	71.6	134	179.6	234.6	278	398.6	418	448	527.1	675	732.7
Condenser	Type		Shell and tube heat exchanger
	Waterside resistance	KPa	40-80
	Connecting pipe specification	DN	80	100	125	150	150	100	150	150	200	200	200	150	150	200	200	200
	Water flow	m3/h	36.8	80.7	130.9	183.7	218.5	78.7	132.1	176.1	234	277.6	395.2	409	440	525.8	673.4	730.9
Evaporator	Type		Shell and tube heat exchanger
	Waterside resistance	KPa	40-80
	Connecting pipe specification	DN	80	100	125	150	150	100	150	150	200	200	200	150	150	200	150	150
	Water flow	m3/h	29.6	66.6	108.4	151.4	181.5	66.4	109	145.2	193.7	229.8	326.7	337	363	168.6	216.7	229.8
Partial heat recovery	Quantity	KW	42	94	152	214	254.1	91.52	153.6	204.7	272.1	322.8	459.5	475.6	511.6	237.8	304.5	322.8
	Waterside resistance	Unit	40-80
	Connecting pipe specification	KW	50	65	80	80	100	65	80	80	100	100	125	100X2	100X2	100X2	125X2	125X2
	Water flow	m3/h	7.1	16.1	26.2	36.7	43.7	15.7	26.4	35.2	46.8	55.5	79	81.8	88	105.2	134.7	146.2

About us

GRAD sales network covers over 100 countries and regions like America, Australia Indonesia, Malaysia, UAE, Thailand, Nigeria etc and has established branch company in USA, and set up offices in Cambodia and Thailand to make overall layout of global market.
