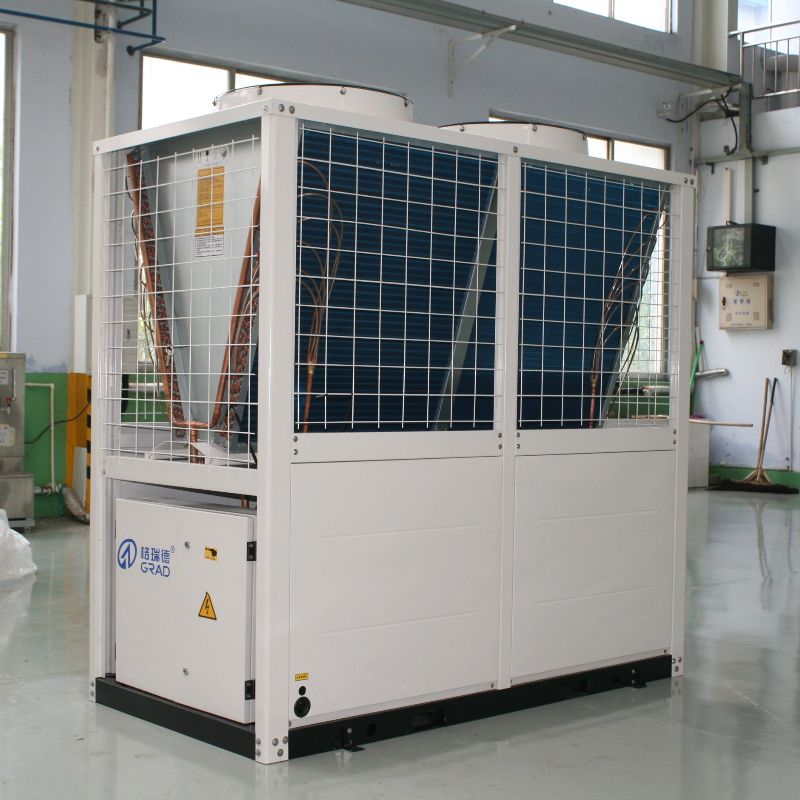

Air Cooled Air Conditioner
1. No need for equipment room,less initial investment.
2. High efficiency,energy saving,environmental protection and safety
High efficiency and energy saving, compared with the electric heating method,it can save 75%of electricity.
3. Modular design,arbitrary combination,flexible application
The unit adopts modular design,which can control up to 16 modules to meet the needs of different building loads.
4. Wide range of operation,strong applicability
It can operate stably at-30℃~25℃ ambient temperature,and stably refrigerate at -30℃~48℃ ambient temperature.
5. Intelligent control does not require special duty
6. Multiple protection functions to ensure reliable operation of the unit.

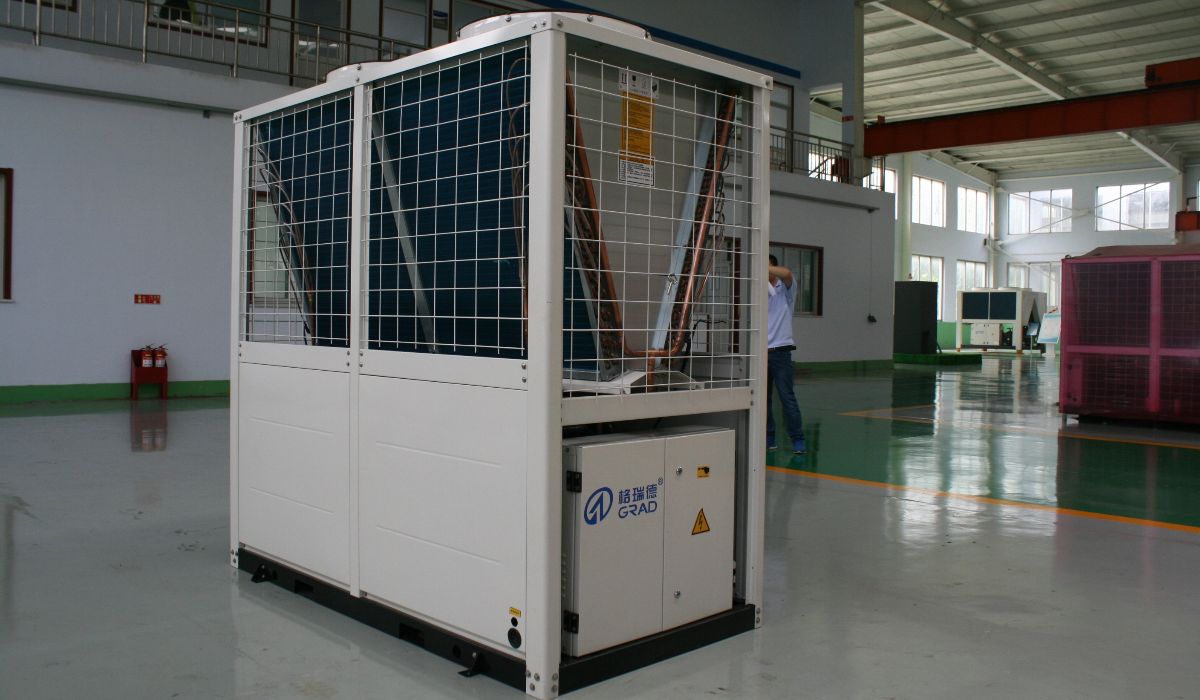

Air Cooled Air Conditioner
Air Cooled Air Conditioner is a kind of energy-saving device that can make the heat flow from the low heat source air to the high heat source.
Prouuct Features:

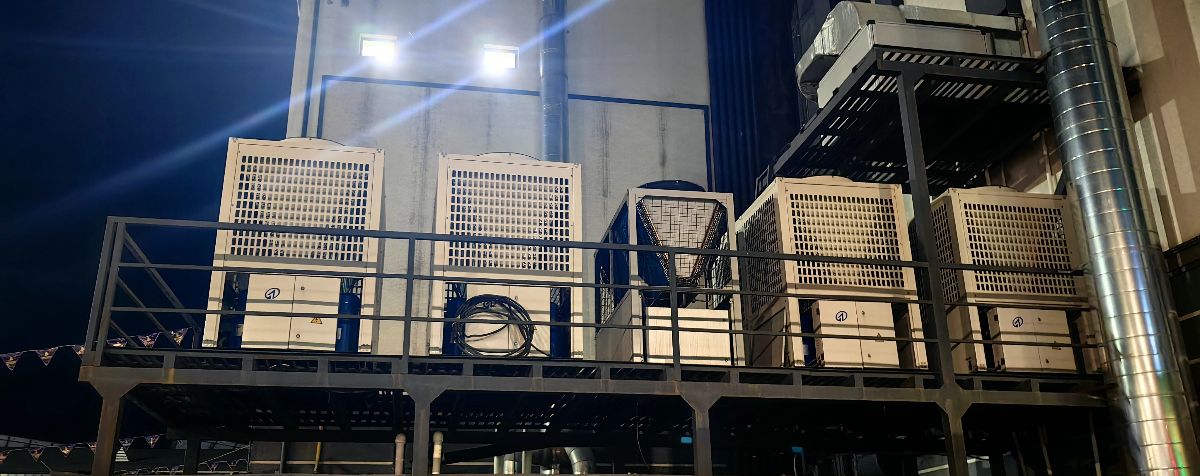

1.Easy to install and saving space:it needs no cooling pump or cooling tower which can save a lot installation and material cost. It can be set on roof, yard, balcony or other suitable open air positions but no need of machine room.
2.Multiple functions: one unit can offer both cooling and heat.
3.Modular design system: each refrigeration system is independent and can be standby of each other. One failure of the cooling system will not affect the other. And the light and small unit make the delivery much easier. The modular design can make it freely combined to meet various requirements.
Product Advantages
1.It operates efficiently within an ultra-wide ambient temperature range of -30℃ to 43℃
2. Precise frost measurement, rapid defrosting, reduced defrosting frequency, and shortened defrosting time
3. Mobile APP operation, remote control, fault warning, and online diagnosis
4. High-efficiency shell and tube heat exchange technology, water-side heat exchanger and flow protection, ultra-high energy efficiency ratio
5. It has a wide range of applications and is suitable for radiator heating, floor radiant heating, central air conditioning cooling and heating
Application scope
Comfort air conditioning systems: large supermarkets or commercial complexes, hotels, shopping malls, office buildings, exhibition halls, airports, stadiums, etc.
Process air conditioning systems: electronics, biology, light textile, chemical engineering, metallurgy, pharmaceuticals, power, machinery, etc.

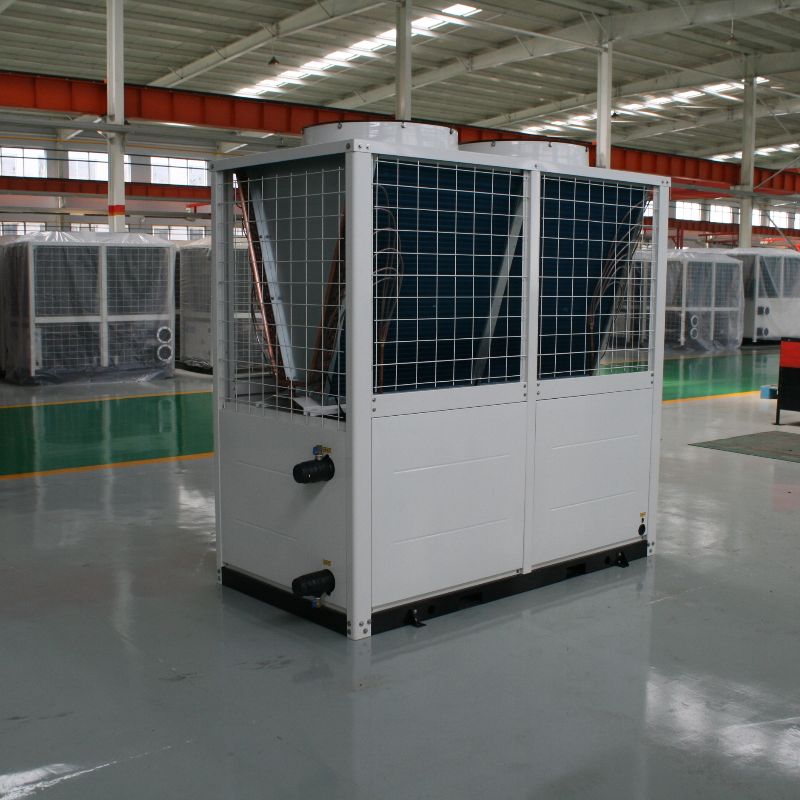

Air-cooled modular heat pump/chiller parameter table | |||||||
unit type | RSAV30B | RSAV40B | RSADV60B | RSADV80B | RSADV130B | ||
RSAV30BH | RSAV40BH | RSAV60BH | RSAV80BH | RSADV130BH | |||
Nominal cooling capacity | KW | 33 | 43 | 65 | 86 | 130 | |
Cooling input poer | KW | 10.5 | 13.5 | 21 | 27 | 42 | |
Nominal heating capacity | KW | 35 | 48 | 70 | 96 | 140 | |
Heating input power | KW | 10.6 | 14.5 | 21.5 | 29 | 43 | |
power supply | 3N～50Hz 380V | ||||||
Maximum operating | A | 30 | 40 | 60 | 90 | 120 | |
refrigerant | R410A | ||||||
Compressor | type | Fully enclosed scroll type | |||||
Condensing fan | type | Axial flow | |||||
Air side heat exchanger | type | Finned heat exchanger | |||||
Waterside | type | Shell and tube heat exchanger | |||||
Water discharge | m3/h | 6 | 8.3 | 12 | 16.5 | 24.1 | |
resistance | kPa | 15-40 | |||||
Nozzle specification | DN | 50 | 50 | 65 | 65 | 80 | |
Noise | dB(A） | 66 | 67 | 68 | 69 | 75 | |
Overall dimension | Length | mm | 1200 | 1200 | 2110 | 2110 | 2210 |
Width | mm | 1080 | 1080 | 1080 | 1080 | 1390 | |
Height | mm | 2160 | 2160 | 2160 | 2160 | 2350 | |
unit weight | kg | 400 | 450 | 800 | 850 | 1300 | |
About us
GRAD sales network covers over 100 countries and regions like America, Australia Indonesia, Malaysia, UAE, Thailand, Nigeria etc and has established branch company in USA, and set up offices in Cambodia and Thailand to make overall layout of global market.

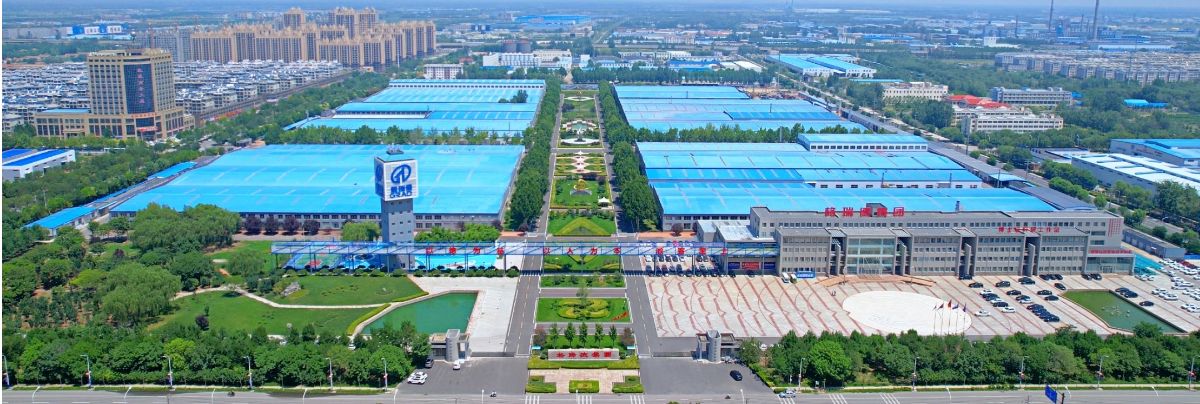

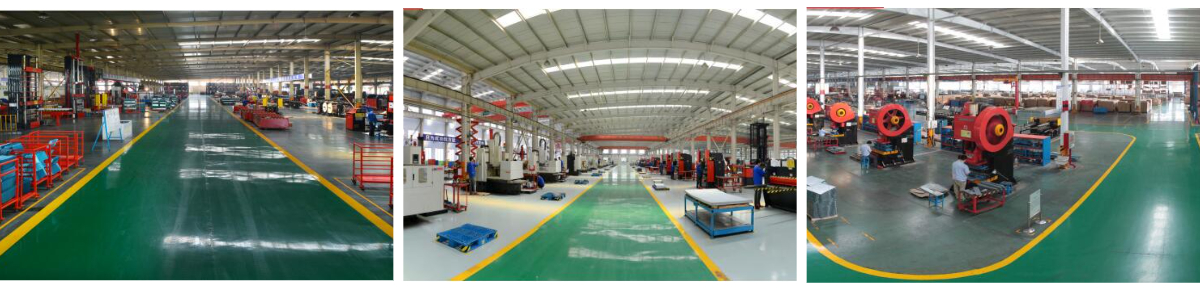

Establised in 1993, GRAD Group covers an area of 1.15 million square meters and has more than 2,000 employees, with an annual output value of nearly 4 billion yuan. GRAD Group's main business: central air conditioning chiller and terminal products, FRP water tank, FRP winding pipe, FRP storage tank, wind turbine cabin cover, environmental protection equipment, and other more than 130 varieties. GRAD Group is the pillar enterprise of the “Dezhou Central Air-Conditioning City” named by the China Refrigeration and Air-Conditioning Industry Association. It ranks the top 10 among central air-conditioning enterprises in the country, The top 3 composite material enterprises，and gets the first-class qualification for the installation of national electromechanical equipment and the second-class qualification for air purification engineering. GRAD Group can undertake central air conditioning engineering, purification engineering construction.
FAQ
Q1. Where is your loading port?
A: Qingdao/Shanghai/Tianjin, China or else port as for your request.
Q2. What's your company's main products?
A: Our company is specialized in central air-conditioning,ventilation and GRP Composite material products.
Q3. What’s your payment term.
A:T/T,30% deposit,70% before delivery or 100% Irrevocable L/C at sight.
Q4. What’s your Warranty.
A:Warranty for 12 months from the date of shipment from the factory.
