Fan Coil
Safe and Durable: All units undergo pressure leak testing. Forged brass water inlets/outlets ensure long-term reliability. Rust-resistant condensation tray and fireproof materials enhance safety. The low-noise motor operates up to 35,000 hours without maintenance.
High Efficiency: Seamless red copper tubes combined with double-flanged aluminum fins maximize heat transfer, boosting both cooling and heating performance.
Quiet Operation: Equipped with a wide volute and multi-blade centrifugal fan for high airflow and low noise, with flexible motor-fan matching to suit various models.
Flexible Installation: Optional water pan lengths available:
Standard pan for compact spaces
Extended pan for enhanced condensate and leakage control
FCU Product
Fan coil unit is the terminal of central air conditioning system.It consists of centrifugal fan and copper tube heat exchanger. GRAD fan coil units including the five forms of nine kinds of specifications.This cassette type fan coil unit can be embedded in the ceiling,it can merge with interior decoration, Only exposing tuyere, and after installation can save space and easy maintenance.
There are five kinds of fan coil according to different structures,horizontal concealed,horizontal exposed,vertical concealed,vertical exposed and cassette.
Introduction
FCU Fan Coil Unit improved the performance after optimized design;There are high efficiency type and standard type.The standard Fan and Coil Unit can meet the national standard parameters;And the high efficiency FCU can meet the parameters higher 20% than national standard
FP-LM Vertical Exposed Type |
|

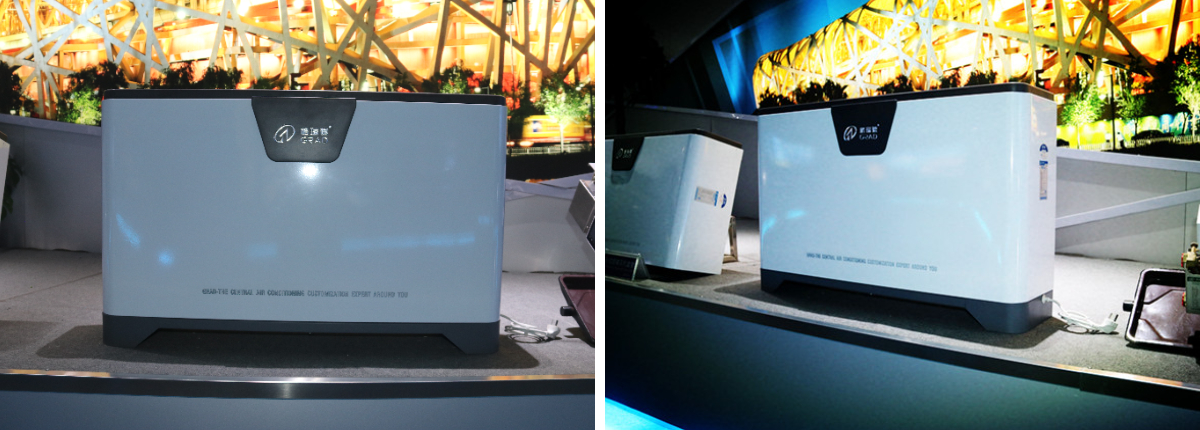

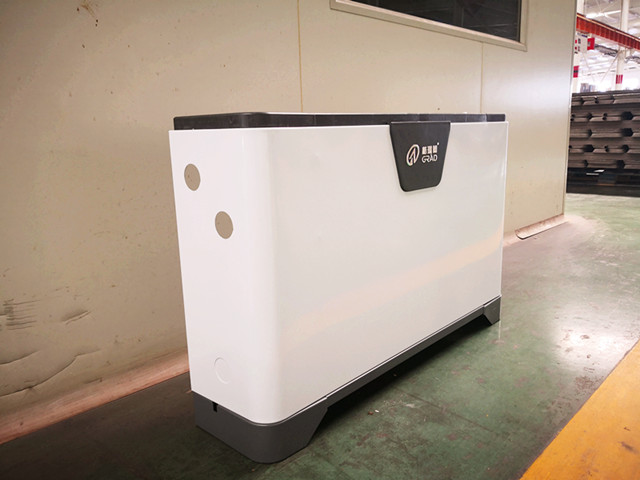

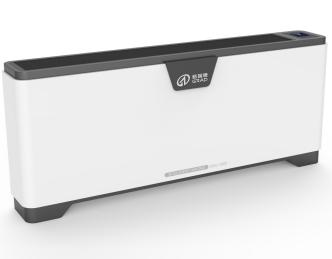

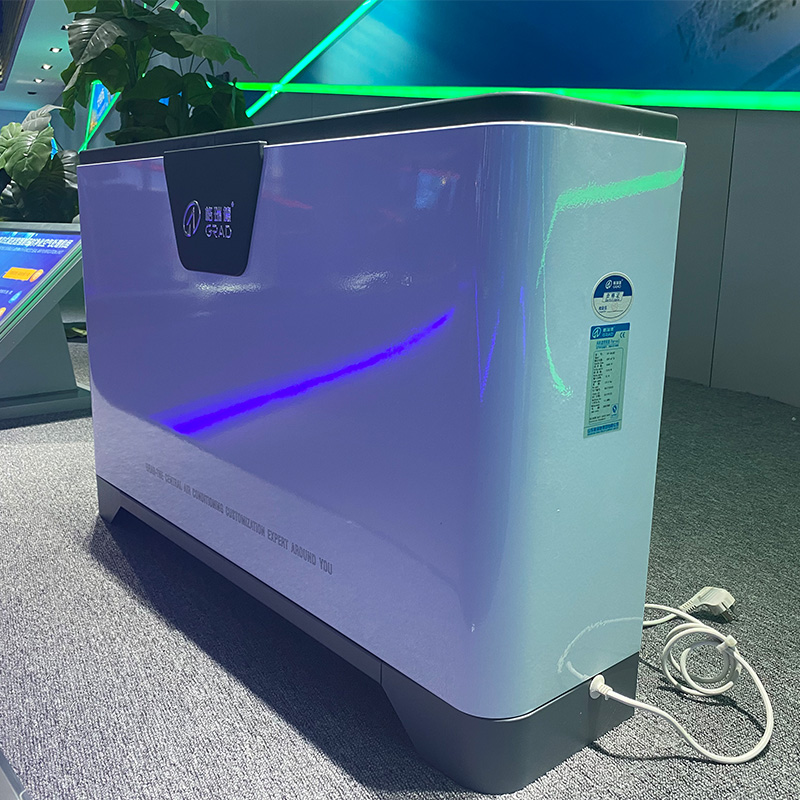

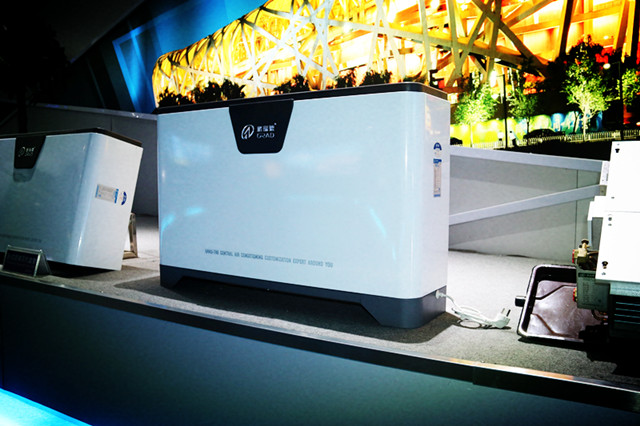

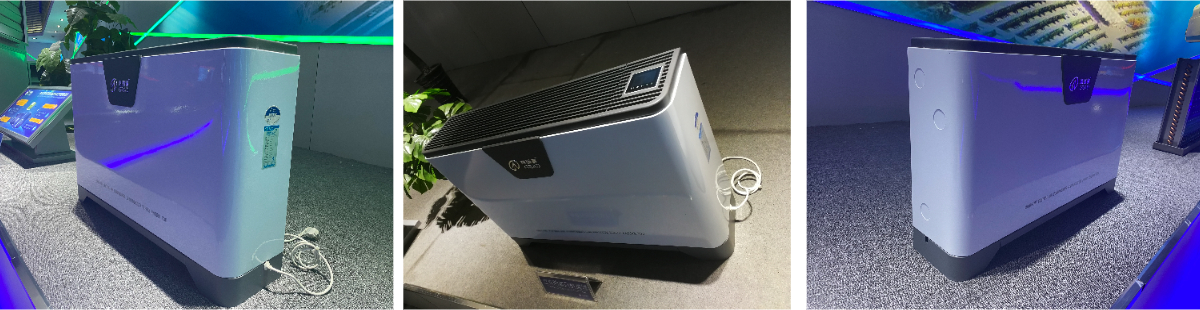

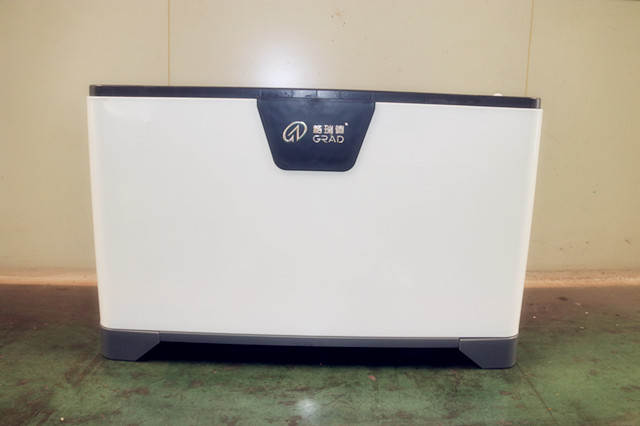

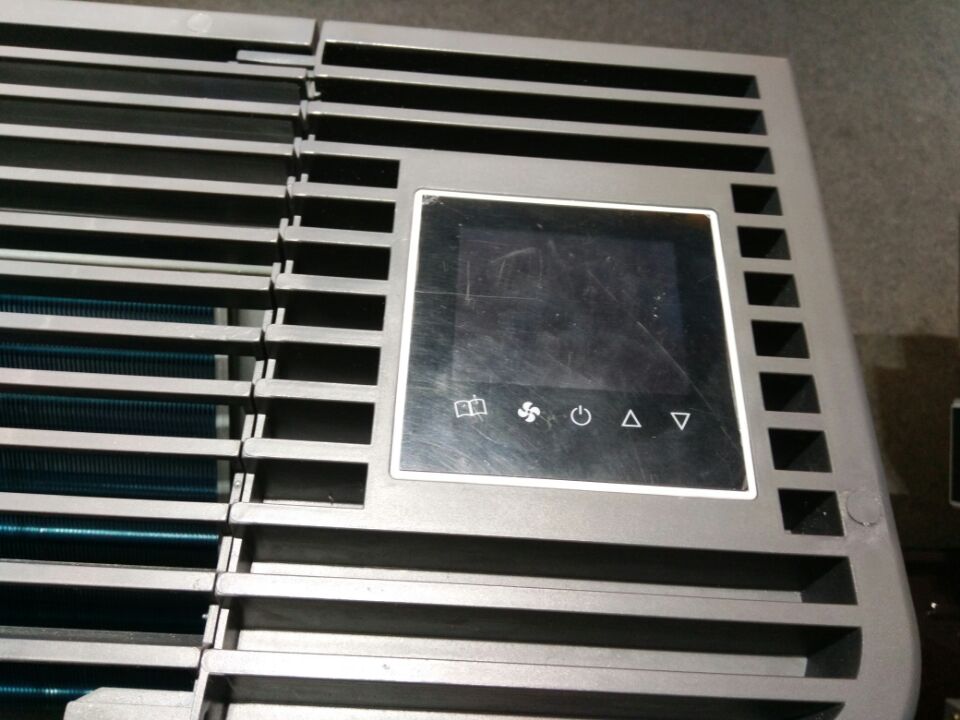

The electrostatic painting shell makes it elegant color and appearance. It can be put on the floor directly and match well with indoor decoration. It is easy to mount, demount and maintain and is of reliable performance. |
Parameters
| SHANDONG GRAD GROUP CO.,LTD NO.6,GRAD ROAD,TIANQU INDUSTRIAL PARK,DEZHOU,SHANDONG,CHINA | |||||||||
Technical Data Sheet | ||||||||||
Product Name | Floor standing Fan coil unit | |||||||||
Model No. | FP-34LM | FP-51LM | FP-68LM | FP-85LM | FP-102LM | FP-136LM | FP-170LM | FP-204LM | FP-238LM | |
Air Volume (m³/h) | 340 | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | 2380 | |
Cooling Capacity (kw) | 1.8 | 2.7 | 3.6 | 4.5 | 5.4 | 7.2 | 9 | 10.8 | 12.6 | |
Heating Capacity (Kw) | 2.7 | 4.05 | 5.4 | 6.75 | 8.1 | 10.8 | 13.5 | 16.2 | 18.9 | |
Power Supply | 220V/1PH/50Hz | |||||||||
Power Input (W) | 36 | 50 | 60 | 74 | 93 | 130 | 147 | 183 | 221 | |
Noise (dB) | 37 | 39 | 41 | 43 | 45 | 46 | 48 | 50 | 52 | |
Water Volume(kg/h) | 310 | 470 | 620 | 780 | 930 | 1240 | 1550 | 1860 | 2170 | |
Water Resistance(kPa) | ≤30 | |||||||||
Weight(kg) | 27 | 32 | 33.5 | 36 | 39 | 52 | 61.5 | 64.5 | 67.5 | |
Water Plate | Iron plate with paiting and insulated | |||||||||
Maximum working pressure(MPa) | 1.6 | |||||||||
Inlet and Outlet water pipe | Rc 3/4" (DN20) internal thread，DN20 | |||||||||
Condensate pipe | R2 3/4" (DN20) internal thread，DN20 | |||||||||
Advantages
Safe and reliable, long life span
The heat exchanger of each FCU has been tested by leak-check at working pressure. The water in/outlet (water collecting head) applies forging brass structure, which is reliable and durable. The water condensing plate is painted to avoid rust. All the materials are fireproofing. The motor applies super low noise bearing, which can keep working for as much as 35000 hours without adding oil or maintenance. The thin and long bearing for the motor has been treated specially to avoid rust.
High efficiency and full energy
The cooling coils adopts double flanging aluminum fin being strung by seamless red copper tube and they are expanded into one to improve the heat transferring efficiency and to enrich the heating and cooling capacity.
High air volume and low noise
It adopts super wide volute and steel plate made multiple blades centrifugal fan. There are many priority matching methods for fan and motor, which can meet requirements of various FCU models.
Flexible selection
Considering the installation sites have their own particularities and site constraints, etc., GRAD provides different lengths of water pans for customers to select.
1.Standard water pan - reduce the required installation position, especially suitable for places with narrow installation space.
2.Extended water pan - better catch the valve leakage and condensate water.
Why choose GRAD fan coil unit?
1.30+ years manufacturer, alibaba 18 years Gold supplier.
2.AHRI & CE certified.
3.1500sets/day production capacity to guarantee timely delivery.
4.Fast reaction for after-sales problem.
5.Multiple types with various models to meet customization requirements.
6.Patent appearance design.
7.Production and sales integration, better understand market requirements to offer OEM/ODM service.
8.Factory direct sales to offer cost-effective product.
