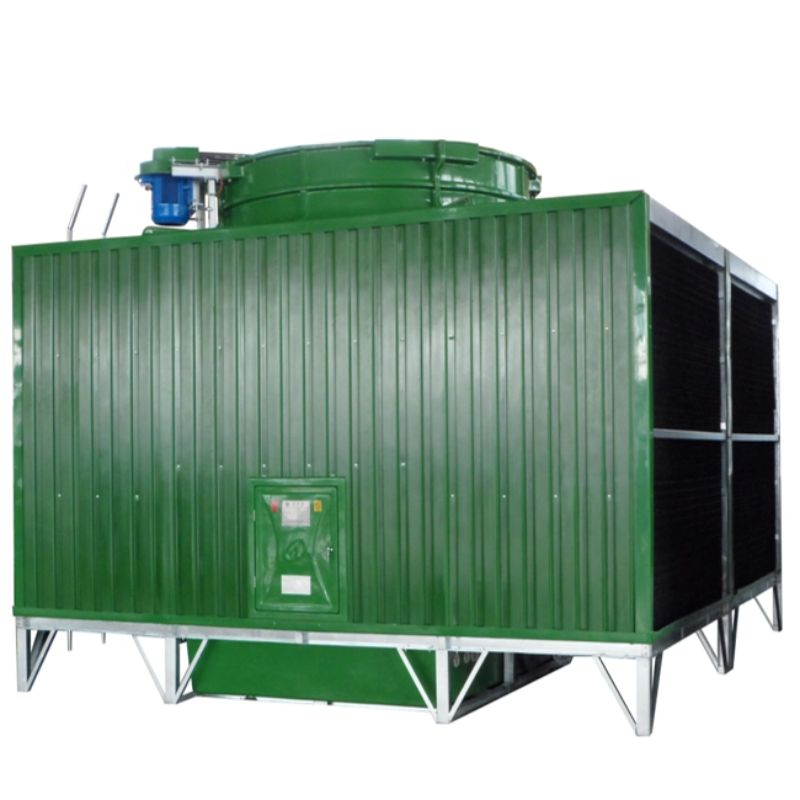

Commercial Cooling Tower

1.CTI certification

Authoritative certification, exported to the European and American markets

2. Long lifespan

The vacuum intake air duct and pultruded panel are made of fiberglass reinforced plastic, which is of high strength and corrosion resistance

3. Low noise

Patented technology of integral water spray packing, with lower noise

4. Efficient cooling

Integral packing, uniform water distribution and large heat exchange area

5. Easy installation

Modular design: Steel parts are welded into blocks before leaving the factory, reducing on-site welding

Contact Now E-Mail Telephone WhatsApp

Product Details

Commercial Cooling Tower

The main functions of Commercial cooling towers are as follows

Cooling: The cooling tower achieves heat dissipation by spraying high-temperature water or other liquids onto the packing layer, utilizing the heat exchange between water and air, thereby reducing the liquid's temperature to the set range.

Realize recycling: The cooling tower conveys the dissipated water back to the equipment for recycling, thereby reducing water consumption and improving the utilization efficiency of water resources.

Protecting equipment: In industrial production, some equipment needs to operate in high-temperature environments. However, high temperatures can have adverse effects on the equipment. Therefore, cooling towers are required to reduce the temperature of the equipment to the normal range to ensure its normal operation.

Energy conservation: Cooling towers can reduce the temperature of liquids to the set range by utilizing natural wind or forced convection through fans, thereby reducing energy consumption and improving energy utilization efficiency.

Commercial Cooling Tower

Application

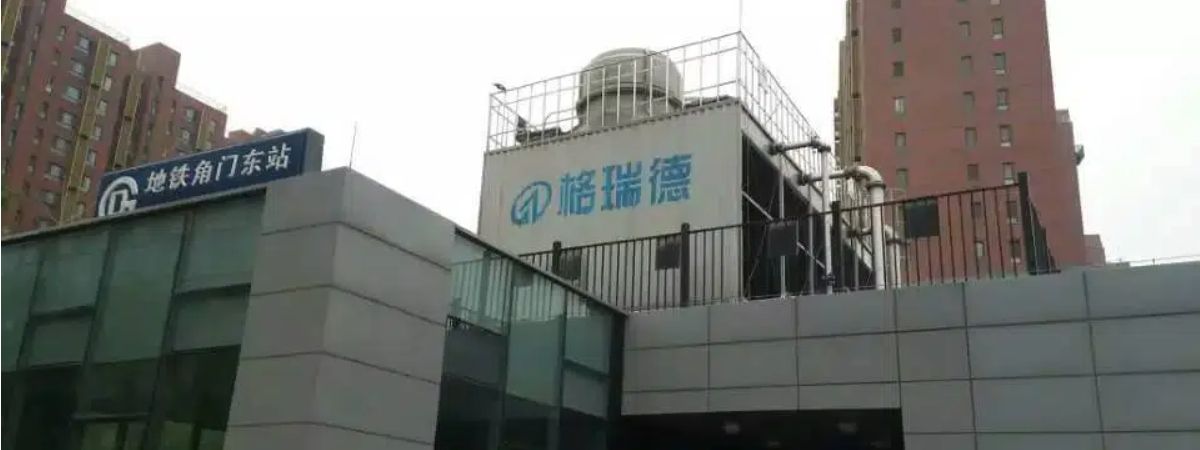

The GAT series cooling towers produced by GRAD have all passed the performance tests of the American Refrigeration Institute and obtained the CTI certification certificate. It can be widely applied in shopping malls, hotels, schools, libraries, office buildings, exhibition halls, airports, stadiums, subways, high-speed railways and other places with high requirements for noise control, providing supporting services for refrigeration chillers.

Commercial Cooling Tower

Core technology

The spray water tray is made by one-time molding process, with no seams as a whole, eliminating dripping and splashing water at the water tray. The frame is formed by one-time bending of hot-dip galvanized steel plates, with C-shaped groove reinforcement design. The fiberglass reinforced plastic air duct is formed by vacuum introduction process, and its strength and toughness are increased by more than 50% compared with the hand lay-up process. All fiberglass reinforced plastic parts have abandoned the original hand lay-up process. The panels are made by pultrusion, the water tanks by molding, and the corners by molding. The overall appearance of the equipment is more aesthetically pleasing. The semi-enclosed water chamber is set up to effectively block debris and prevent direct sunlight from shining on the water chamber, which could cause pollution to the water system by algae, bacteria, etc. The tower body is equipped with fiberglass reinforced plastic (FRP) protective plates, and the outer layer of the protective plates is formed with high-quality imported gel coat, which is resistant to ultraviolet rays and aging, thus extending the service life of the equipment. It adopts a modular design of 100-700 square meters per hour, suitable for connecting multiple towers together. It occupies a small area and is elegant and stylish. Steel parts are welded into blocks before leaving the factory, reducing on-site welding and ensuring the safe operation of the equipment.

Technical and specification parameters of BHD-100～BHD- 700

Model	Water yield m3/h	Cooling efficient×10³ K cal/h	Motor power KW	The fan diameter Φ mm	The tower body lift mH₂O	Overall dimensions (mm)			Noise dB(A)
Model	Water yield m3/h	Cooling efficient×10³ K cal/h	Motor power KW	The fan diameter Φ mm	The tower body lift mH₂O	L	W	H	P	R	T
BHD-100	100	500	2.2	1768	3.5	3800	2060	3350	60.1	57.4	50.0
BHD-125	125	625	3	1768	3.5	4200	2060	3350	61.2	57.6	51.2
BHD-150	150	750	3	2168	3.6	4200	2460	3350	61.4	57.8	51.5
BHD-175	175	875	4	2168	3.6	4600	2460	3350	62.3	58.1	52.9
BHD-200	200	1000	4	2560	3.8	4600	2860	3350	62.5	58.7	53.4
BHD-225	225	1125	5.5	2560	3.9	5000	2860	4000	63.1	59.3	53.8
BHD-250	250	1250	5.5	2954	4.0	5000	3260	4000	63.4	59.8	54.5
BHD-300	300	1500	7.5	2954	4.0	5400	3260	4000	64.3	60.6	55.2
BHD-330	330	1650	7.5	3340	4.2	5400	3660	4000	63.9	60.4	54.7
BHD-370	370	1850	11	3340	4.4	5800	3660	4500	64.2	60.7	55.1
BHD-400	400	2000	11	3744	4.9	5800	4060	4500	64.7	61.3	55.7
BHD-450	450	2250	15	3744	4.9	6200	4060	4500	65.3	61.4	56.1
BHD-500	500	2500	15	4140	5.0	6600	4460	5000	65.4	61.7	56.3
BHD-600	600	3000	18.5	4140	5.3	7000	4460	5000	66.1	62.4	57.1
BHD-700	700	3500	18.5	4540	5.3	7400	4860	5000	67.3	63.6	58.2
