Fan Coil Unit Price
Why choose GRAD fan coil unit?
1.Factory direct sales to offer cost-effective product.
2.AHRI & CE certified.
3.30+ years manufacturer.
4.1500sets/day production capacity to guarantee timely delivery.
5.Multiple types with various models to meet customization requirements.
6.Patent appearance design.
7.Production and sales integration, better understand market requirements to offer OEM/ODM service.
8.Fast reaction for after-sales problem.
Introduction

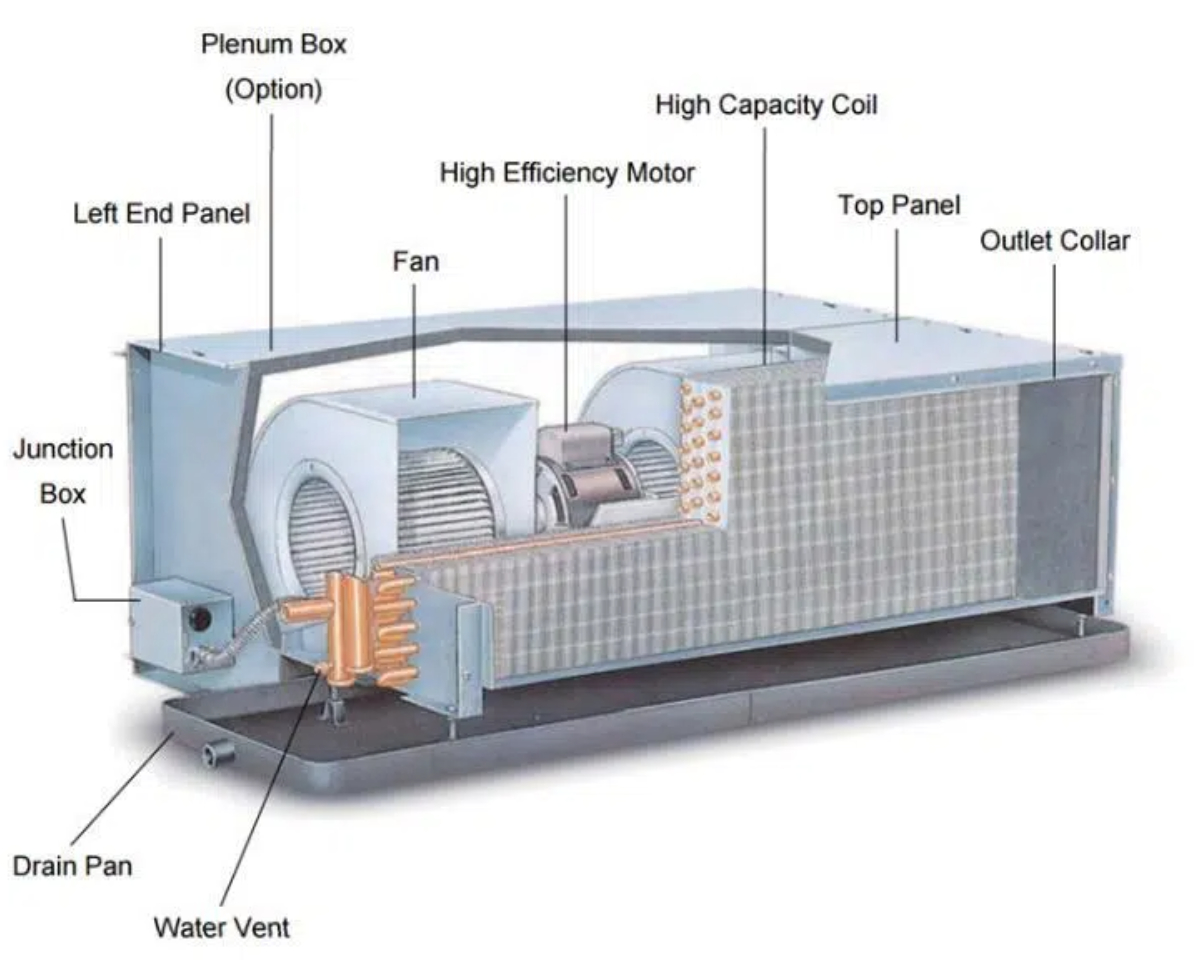

The fan coil unit is the ideal terminal product of central air conditioning system. It is consist of heat exchanger, strainer, fan, water pans, exhaustair valve and support. It is continuously exchanged the central heating or cooling air with indoor air. To keeping a constant room temperature. It can meet the demands of cooling, heating or humidification, and then create a fresh, quiet, and warm environment.
Featires for Fan Coil Unit
※Easy Maintenance and Cleaning
The fan coil unit is designed with user-friendly access panels, allowing for quick removal of the fan and heat exchanger components. This facilitates routine cleaning and maintenance, ensuring optimal performance and hygiene. The drain pan is sloped to prevent water accumulation, while the removable filter can be easily cleaned or replaced, minimizing downtime and maintaining air quality.
※Wide Application Scenarios
GRAD fan coil units are suitable for various environments, including hotels, offices, hospitals, and residential buildings. With customizable
airflow and temperature control, they adapt seamlessly to different room layouts and usage requirements. The compact design and flexible
installation options make them ideal for both new constructions and retrofit projects.
※Intelligent Control Options
Equipped with advanced control systems, the FCU supports integration with building management systems (BMS) for centralized monitoring.
Users can adjust settings via wall-mounted thermostats or smart devices, enabling precise temperature regulation and energy savings. Optional features include sleep mode, timed operation, and humidity sensors for enhanced comfort.
※Eco-Friendly Design
The unit complies with international energy efficiency standards, utilizing environmentally friendly refrigerants and materials. The optimized
heat exchange system reduces energy consumption, while the low-noise operation minimizes environmental disturbance. GRAD’s
commitment to sustainability ensures both performance and ecological responsibility.
Data Sheet for fan coil units
Model No. | FP-34 | FP-51 | FP-68 | FP-85 | FP-102 | FP-136 | FP-170 | FP-204 | FP-238 | FP-272WAG | |
Qty. | 23 | 10 | 4 | 25 | 11 | 37 | 82 | 21 | 99 | 33 | |
Air Volume (m³/h) | 340 | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | 2380 | 2720 | |
Cooling Capacity (kw) | 2.15 | 3.35 | 3.95 | 5.05 | 5.95 | 7.45 | 9.25 | 10.95 | 12.85 | 15.7 | |
Heating Capacity (Kw) | 3.7 | 5.5 | 6.7 | 8.4 | 9.8 | 12.8 | 15.9 | 19.2 | 21.4 | 23.55 | |
ESP(Pa) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 125 | |
Power Supply | 220V/1PH/60Hz | ||||||||||
Power Input (W) | 48 | 64 | 81 | 97 | 114 | 169 | 204 | 243 | 291 | 520 | |
Dimension尺寸 (L*W*D) mm | 730*520*230 | 880*520*230 | 980*520*230 | 1080*520*230 | 1200*520*230 | 1500*520*230 | 1660*520*230 | 1830*520*230 | 1940*520*230 | 1500*597*331 | |
Air Outlet Size(mm) | 470*130 | 620*130 | 700*130 | 820*130 | 940*130 | 1240*130 | 1400*130 | 1580*130 | 1720*130 | 1240*230 | |
Cooling coil | Copper pipe & aluminum fins | ||||||||||
Cooling coil system | 2-pipe system, with heating & cooling | ||||||||||
Copper Tube Diameter | φ7mm | φ7mm | φ7mm | φ7mm | φ7mm | φ7mm | φ7mm | φ7mm | φ7mm | φ9.52mm | |
Copper Tube Thickness | 0.28 mm | ||||||||||
Fins Thickness | 0.095 mm | ||||||||||
Fins Distance | 1.9mm | 2.2 mm | |||||||||
No. of Fins | 247 | 326 | 368 | 431 | 494 | 652 | 736 | 831 | 905 | 564 | |
Air return box | Back return | ||||||||||
Air Return Sheet Thickness | 0.75 mm Galvanized Sheet 0.75mm | ||||||||||
Fans (QTY) | 1 | 2 | 2 | 2 | 2 | 3 | 4 | 4 | 4 | 3 | |
Motors (SET) | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | |
Noise (dB) | 42 | 44 | 46 | 47 | 49 | 50 | 52 | 54 | 56 | 56 | |
Water Plate | Iron plate with paiting and insulated | ||||||||||
Inlet and Outlet water pipe | 1" (DN20) internal thread ，DN20 | 1" (DN25) internal thread | |||||||||
Condensate pipe | 3/4" (DN20) internal thread ，DN20 | ||||||||||
Control type | 3-speed button controller with RS485 | ||||||||||
Project Show
GRAD sales network covers over 100 countries and regions like America, Australia Indonesia, Malaysia, UAE, Thailand, Nigeria etc and has established branch company in USA, and set up offices in Cambodia and Thailand to make overall layout of global market.
About Us
Establised in 1993, GRAD Group covers an area of 1.15 million square meters and has more than 2,000 employees, with an annual output value of nearly 4 billion yuan. GRAD Group's main business: central air conditioning chiller and terminal products, FRP water tank, FRP winding pipe, FRP storage tank, wind turbine cabin cover, environmental protection equipment, and other more than 130 varieties. GRAD Group is the pillar enterprise of the “Dezhou Central Air-Conditioning City” named by the China Refrigeration and Air-Conditioning Industry Association. It ranks the top 10 among central air-conditioning enterprises in the country, and gets the first-class qualification for the installation of national electromechanical equipment and the second-class qualification for air purification engineering. GRAD Group can undertake central air conditioning engineering, purification engineering construction.
Express and payment
1. Packing: Standard Export Carton Packing or plywood package.
2. Delivery Day: 20 days after deposit is confirmed.
3. Delivery Term: FOB,CIF,CFR or EXW are welcomed.
4. Payment Term: T/T,30% deposit,70% before delivery or 100% Irrevocable L/C at sight.
5. Warranty: Warranty for 12 months from the date of shipment from the factory.
6. Payment Currency: USD,EUR or CNY.
7. For sample or small quantity one or two, We suggest Express DHL etc.
