Floor Mounted Fan Coil Unit
Why choose GRAD fan coil unit?
1.30+ years manufacturer.
2.AHRI & CE certified.
3.1500sets/day production capacity to guarantee timely delivery.
4.Fast reaction for after-sales problem.
5.Multiple types with various models to meet customization requirements.
6.Patent appearance design.
7.Production and sales integration, better understand market requirements to offer OEM/ODM service.
8.Factory direct sales to offer cost-effective product.
Floor Mounted Fan Coil Unit
FCU product
GRAD FCU mainly consists of centrifugal fan and heat exchanger etc., which is one of the terminals in the central air conditioning system. It has been widely applied in air conditioning occasions of civil or industrial buildings with large space or of multiple rooms like hotel, restaurant, factory, exhibition hall, shopping mall and office buildings.
It can meet the requirements of cooling, dehumidification and heating etc., which can create a fresh, quiet and year-round balmy working and living conditions.
Introduction
FCU improved the performance after optimized design;There are high efficiency type and standard type.The standard FCU can meet the national standard parameters;And the high efficiency FCU can meet the parameters higher 20% than national standard.
Model No. | FP-34LM | FP-51LM | FP-68LM | FP-85LM | FP-102LM | FP-136LM | FP-170LM | FP-204LM | FP-238LM |
Air Volume (m³/h) | 340 | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | 2380 |
Cooling Capacity(kw) | 1.8 | 2.7 | 3.6 | 4.5 | 5.4 | 7.2 | 9 | 10.8 | 12.6 |
Heating Capacity(Kw) | 2.7 | 4.05 | 5.4 | 6.75 | 8.1 | 10.8 | 13.5 | 16.2 | 18.9 |
Power Supply | 220V/1PH/50Hz | ||||||||
Power Input (W) | 36 | 50 | 60 | 74 | 93 | 130 | 147 | 183 | 221 |
Noise (dB) | 37 | 39 | 41 | 43 | 45 | 46 | 48 | 50 | 52 |
Water volume(kg/h) | 310 | 470 | 620 | 780 | 930 | 1240 | 1550 | 1860 | 2170 |
Water resistance(kPa) | ≤30 | ||||||||
Weight(kg) | 27 | 32 | 33.5 | 36 | 39 | 52 | 61.5 | 64.5 | 67.5 |
Water Plate | Iron plate with paiting and insulated | ||||||||
Maximum working pressure(MPa) | 1.6 | ||||||||
Inlet and Outlet water pipe | Rc 3/4" (DN20) internal thread ，DN20 | ||||||||
Condensate pipe | R2 3/4" (DN20) internal thread ，DN20 | ||||||||

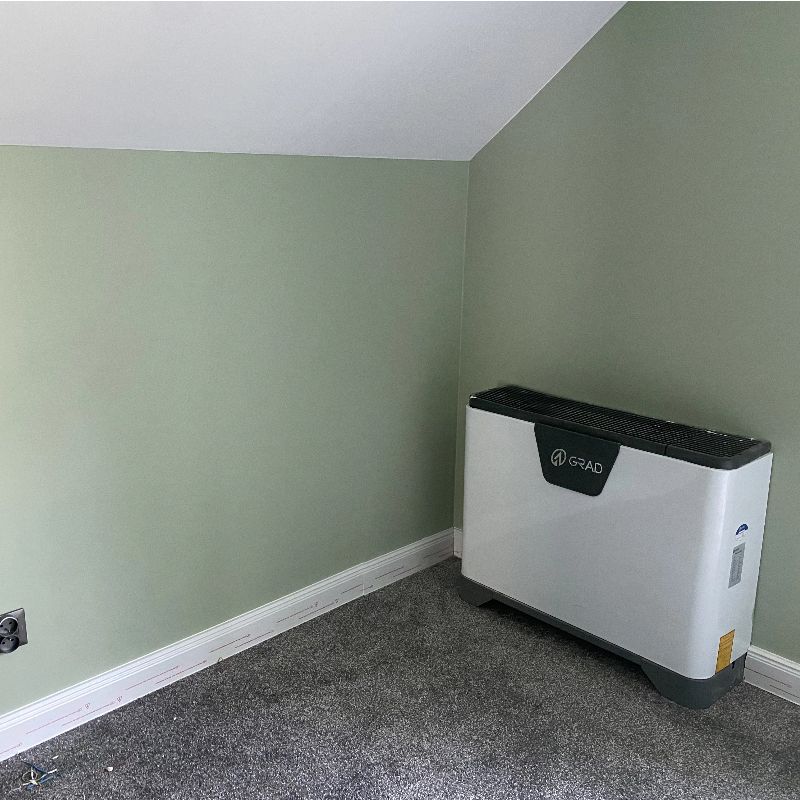

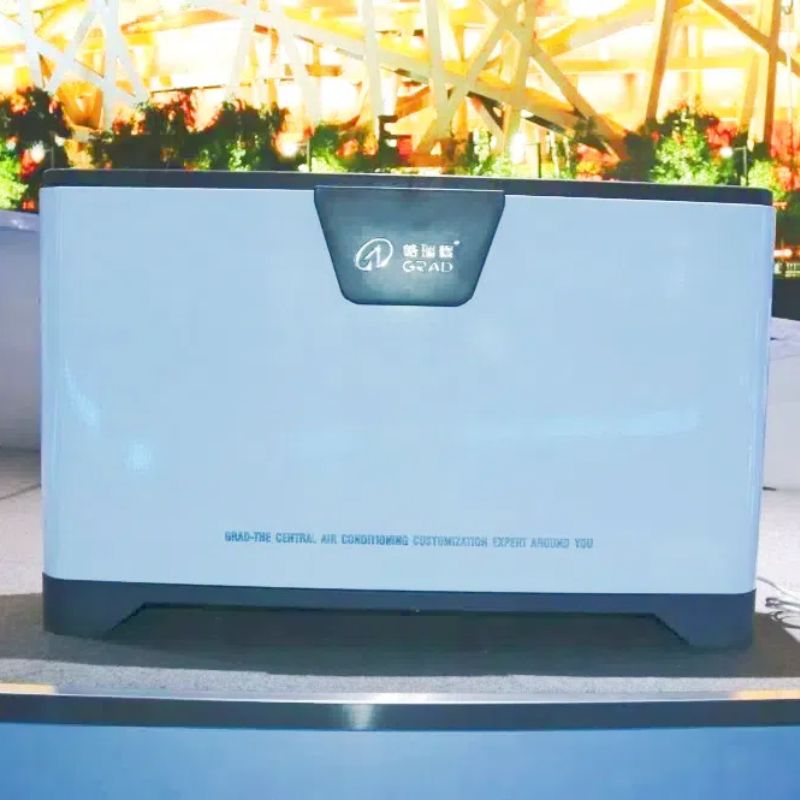

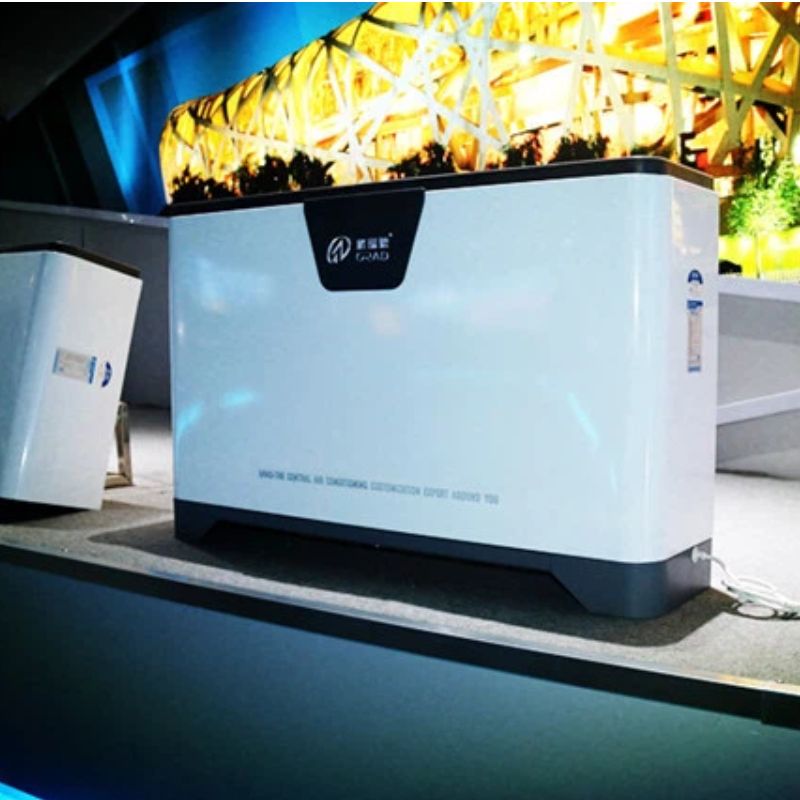

FP-LM Vertical exposed type
The electrostatic painting shell makes it elegant color and appearance. It can be put on the floor directly and match well with indoor
decoration. It is easy to mount, demount and maintain and is of reliable performance.
Product function
1)Low noise.
2)Easy installation.
3)Special design of air filter.
4)Air flows: 340 to 2380m3/h.
5)Cooling capacity range: 1.8 to 12.6kW.
6)Power supply: 220V, 50HP, and 1pH depends on the different country.
7)Used for: Industry, hotel, commercial building, etc.
8)Function: cooling only, cooling and heating.
9)Test condition for rated refrigerating output of fan coil unit.
10)Temperature of dry ball: 27℃ Temperature of wet ball: 19.5℃ Temperature of inlet water: 7℃ Temperature difference between inlet water and outlet water: 5℃
11)Test condition for rated heating output of fan coil unit: Temperature of dry ball: 21℃ Temperature of inlet water: 60℃ Rated water volume is same as in test condition of rated refrigerating output Items marked with refers to single-shaft motor.
Shandong GRAD Group is a large modern enterprise with over two decades history. Our business started in 1993, with staff of over 2200, we are focus on R&D, production, marketing, installation and maintenance for central air conditioning system and G R P composite material products. We are committed to providing customers with one-stop central air-conditioning and FRP composite material product solutions.
Main products:Central air conditioners,ventilators ,GRP Composite material products,Environment protection products
Employment : 2500+ employees
Registered capital: ￥ 100 million
Equipment price : ￥370 million
Total capital :￥ 925 million
Annual output value: ￥over 3 billion
Design team:300+
Overseas offices:
1. Thailand and Cambodia offices
2. USA branch company
