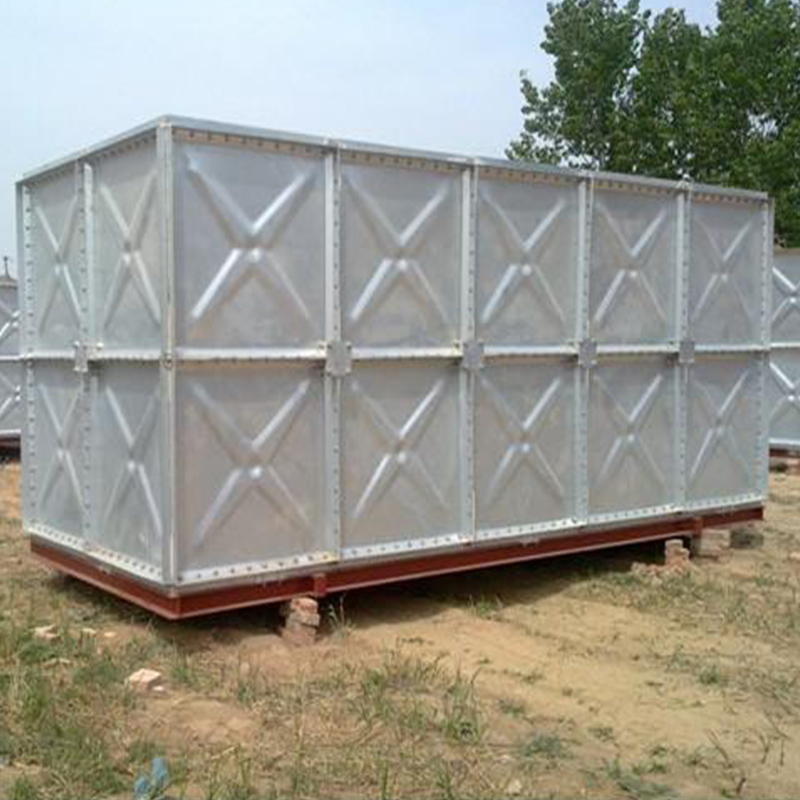

Galvanized Water Tanks for Sale
The product is suitable for the storage of building water supply,regulating the expansion of water tanks,heating systems,condensate tanks and temporary storage tanks for building construction,industry,national defense and so on.
1.The installation is simple and convenient,and the process of secondary installation of the original insulated water tank is canceled , which saves the installation period.
2.Beautiful appearance,stable structure and good corrosion resistance.
The Galvanized Water Tanks for Sale is a new type of water tank designed and manufactured by GRAD.The manufacture and installation of this product are not affected by civil construction,no welding equipment,one-time stretch forming,beautiful and durable,prevent secondary pollution of water quality,and conform to the standardization and system of building products.Chemical and factory requirements.

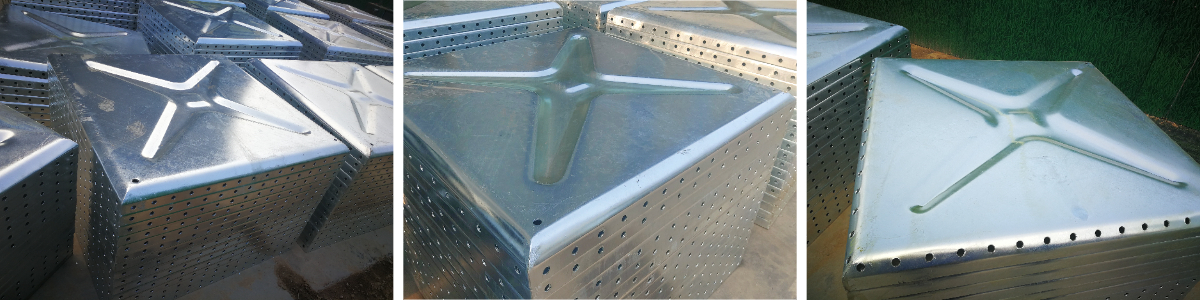

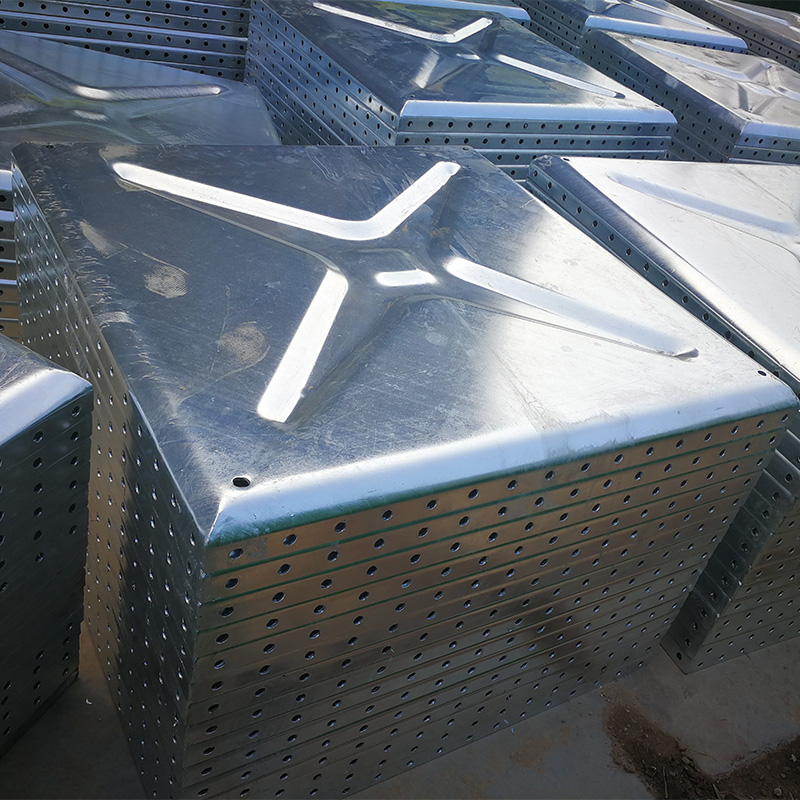

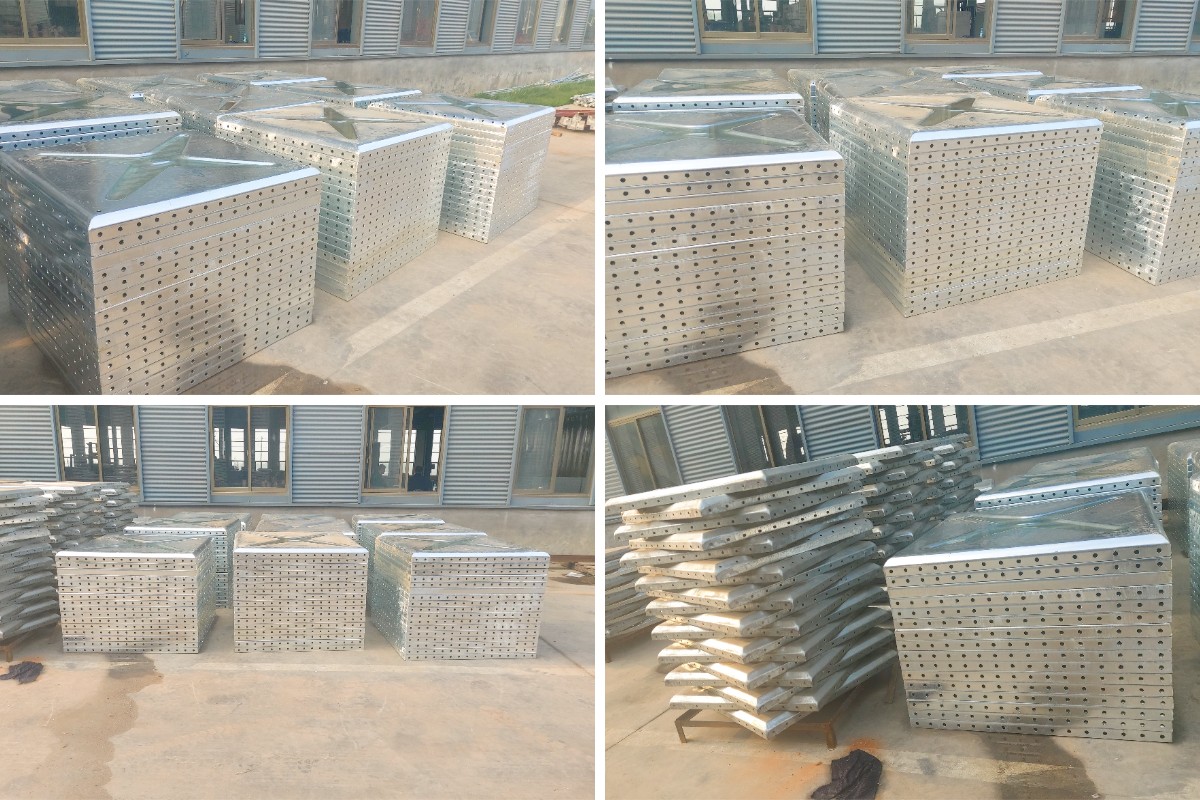

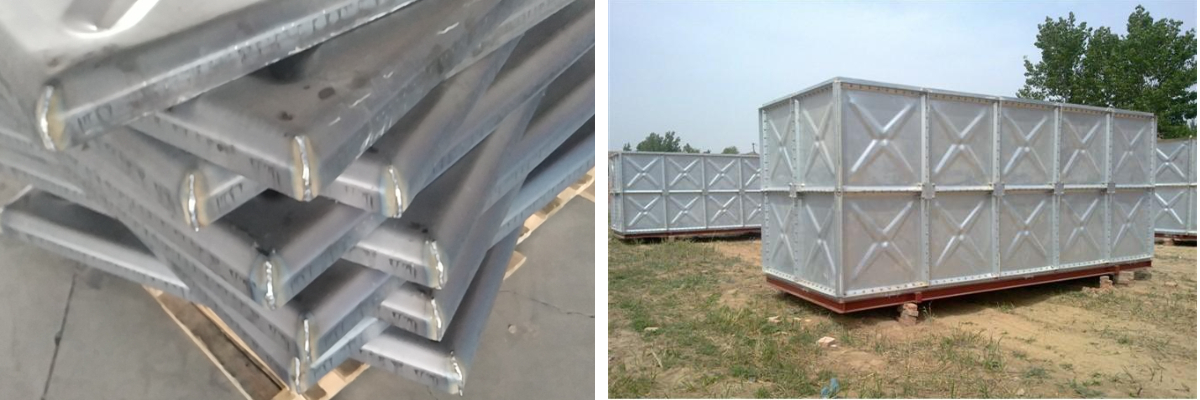

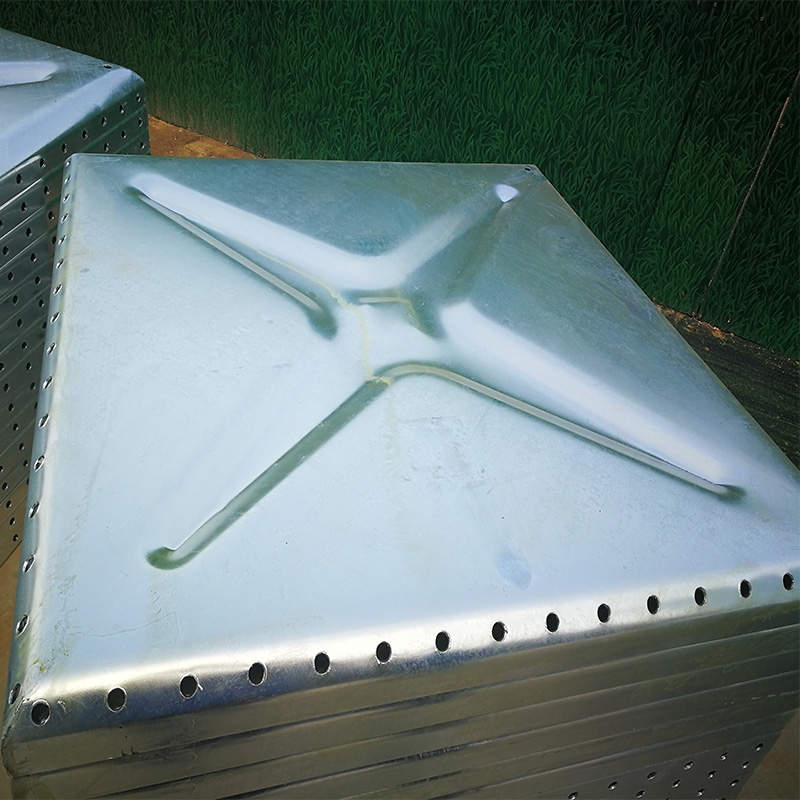

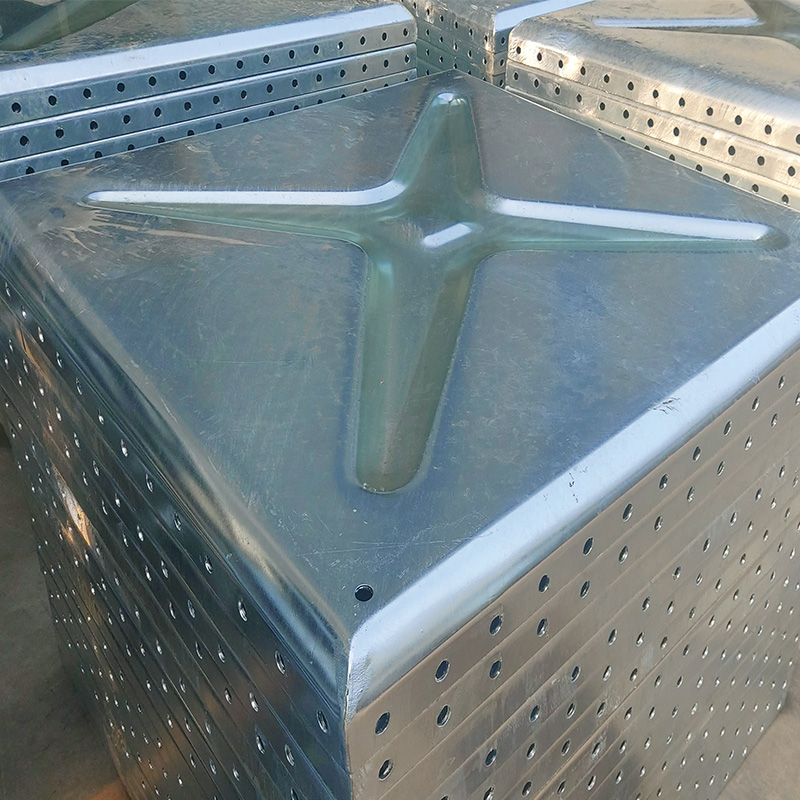

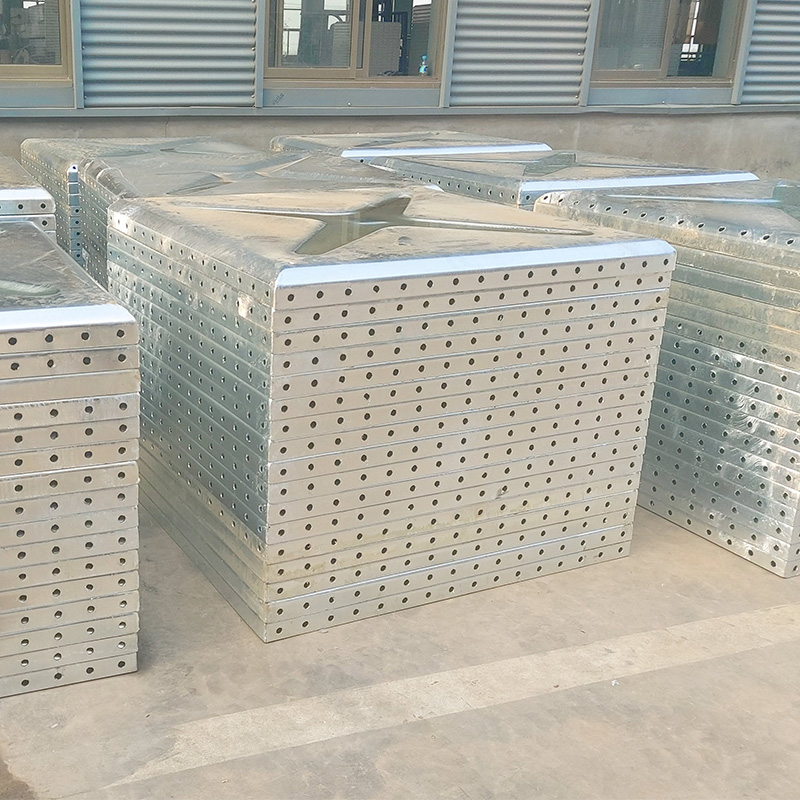

This product adopts Q235 steel panel and is stamped to form standard blocks of 2000×1000,2000×500,1500×1000, 1500×500,1000×1000 and 1000×500,500×500,etc.,assembling on site,assembling Non-toxic rubber mats are placed between the standard blocks and bolted.
The storage volume ranges from 1.0 cubic meters to 3000 cubic meters and the height can reach 5 meters.
The diameter of the inlet pipe,outlet pipe and overflow pipe of the water tank shall be determined by design:there shall be no less than 700mm passages around the water tank,and the bottom of the tank and the top of the tank shall be not less than 600mm.The connection gap between the bottom of the box and the standard block at the bottom of the box shall be located on the support.
Water filing experiment:After the water tank is assembled,close the outlet pipe and the drain pipe,open the inlet pipe,and check it while releasing the water.When it is full,it will keep the water for 2-3 hours.The thickness of the board has the thickness of the national standard and the thickness of the company,which is freely chosen by the customers.

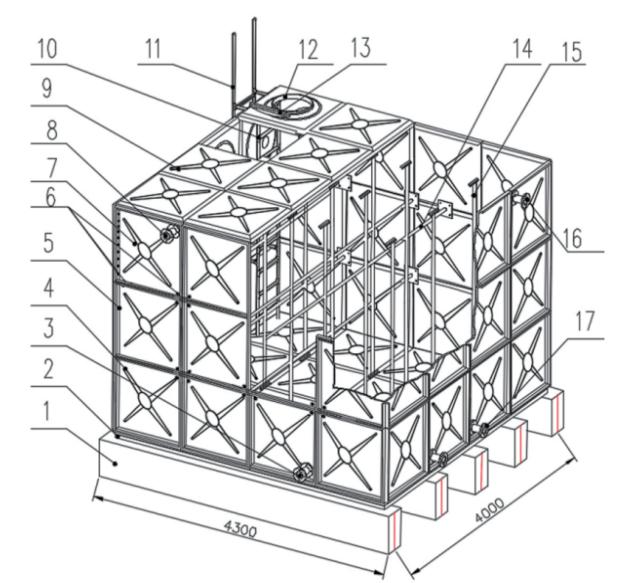

1. Tank foundation | 10.Inner ladder |
2.Tank base | 11.Outer ladder |
3.Drain outlet | 12. Manhole |
4.Side panel 1 | 13.Manhole cover |
5.Side panel 2 | 14.Tie piece |
6.Bolted flat mat connection | 15.Support |
7.Side panel 3 | 16.（double）water inlet |
8.Air vent | 17.（double）water outlet |
9.Top panel |
