Water Storage Tanks
The FRP combination water tank produced by GRAD meets the national standards. The water quality test and toxicology test were carried out by the provincial health and epidemic prevention station. The results showed that no toxic and banned compounds were found in the water quality. The results of 23 indicators including volatile matter were in accordance with GB/T17219-1998. Toxicology experiments:Animal experiments in FRP tank immersion showed no toxicity and no accumulation toxicity.
1. The installation is simple and convenient,and the process of secondary installation of the original insulated water tank is canceled , which saves the installation period.
2. Good thermal insulation effect.
3. Beautiful appearance,stable structure and good corrosion resistance.
Product Description:

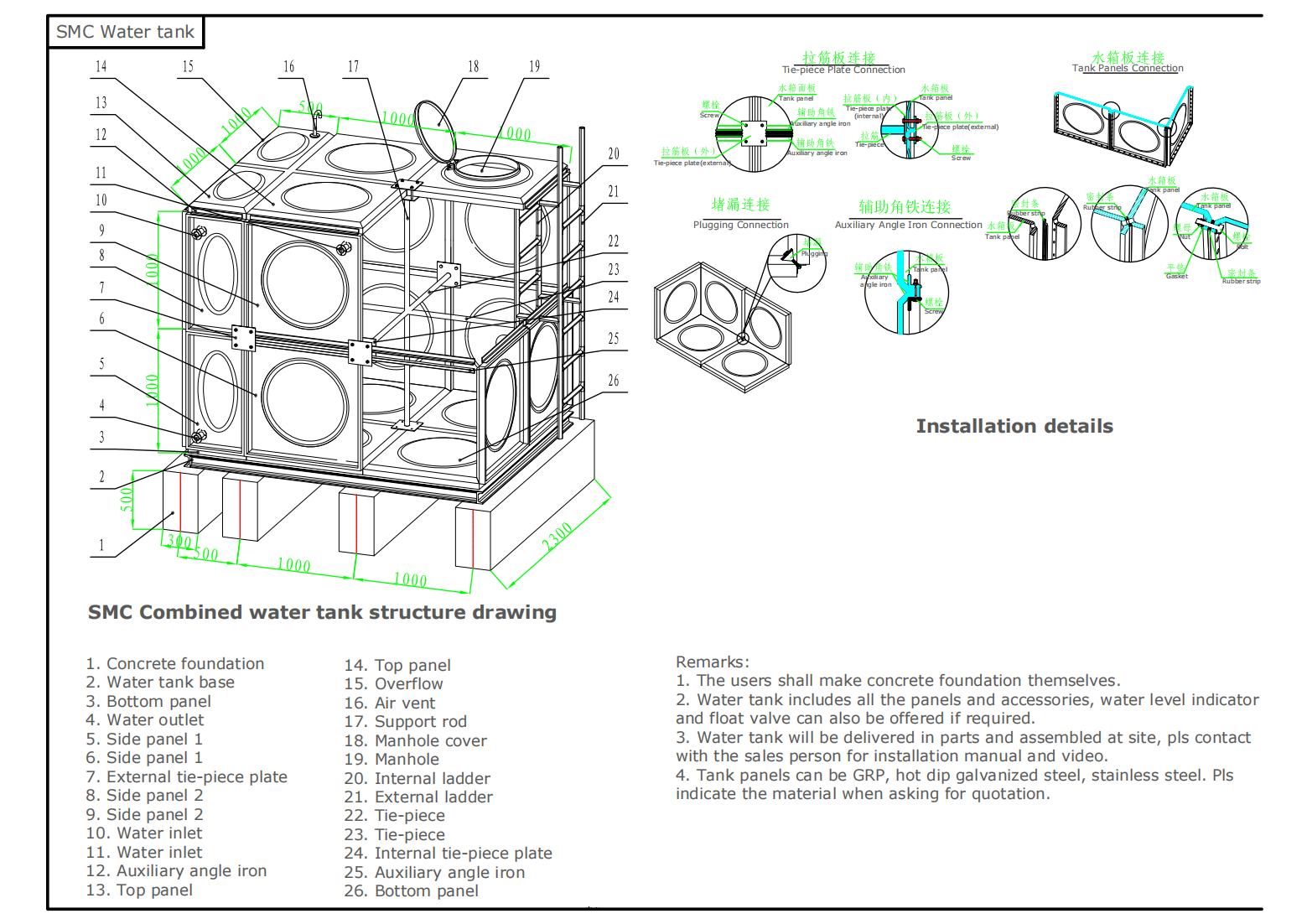

The FRP water tank is assembled by FRP molded panel,sealing material,metal structure and supporting system.It can be spliced according to the needs of customers.The highest recommended is 3M or less,If it is more 3M high ,it needs special design.If the original water tank needs to be replaced,there is no need to improve the house,only there is a door to let the panels come in,and the adaptability is very strong,which brings great convenience to design and construction.
FRP water tank is light in weight,non-corrosive,non-leakage,good water quality,application range wide,long service life,good heat preservation performance,easy to clean and maintain,and highly applicable.It is an ideal product for public living water,fire fighting water and industrial water storage facilities.It has beautiful appearance,convenient construction,easy assembly and disassembly, and the structure of the panel adopts a cross shape.Compared with the steel water tank and the concrete water tank,it has its own characteristics and creativity.Although the initial investment of the combined water tank is higher than that of the traditional water tank,it has the advantages of small self-weight,convenient installation,easy maintenance and so on,so it is welcomed by the customers.
The FRP combined water tank is a new type of water tank,which commonly used in the world.Its unique performance completely solves the problem that the concrete water tank is heavy,easy to leak and the steel water tank is easy to corrode and the anti-corrosion coating is often off.But the FRP water tank will be no leakage,light weight,good water quality,beautiful appearance,long service life and convenient installation.And the advantages of the FRP water tank include easy maintenance and cleaning:t widely used in industrial and mining,enterprises and institutions,housing,hotels.restaurants and other buildings.
Parameters:
Tensile strength,Mpa | ≥60 |
Bending strength,Mpa | ≥120 |
Bending modulus,Gpa | ≥7.0 |
Pap hardness | ≥60 |
Bibulous rate,% | ≤0.5 |
Glass fiber content,% | ≥27 |
Maximum distortion of side wall | ≤0.5% |
distortion of the bottom | ≤8mm. |
Panel Size and Thickness:
2000*1000mm,(Thickness included:4mm,5mm,6mm,7mm,8mm,9mm,10mm,12mm,)
1000*1000mm,1000*500mm,500*500mm
(Thickness included 4mm,6mm,8mm,10-22mm;4mm water tank panel is specially designed as water tank cover).
Water Tank Panel Standard:
SMC water tank panel standard (low configuration) | ||||||||
S.N. | Height mm | Thickness(mm) | Channel steel bottom frame | |||||
Bottom panel | Side panel 1 | Side panel 2 | Side panel 3 | Side panel 4 | Top panel | |||
1 | 1000 | 8 | 6 | 4 | 10# | |||
2 | 1500 | 8 | 6 | 6 | 4 | 10# | ||
3 | 2000 | 8 | 6 | 6 | 4 | 10# | ||
4 | 2500 | 12 | 12 | 8 | 6 | 4 | 10# | |
5 | 3000 | 12 | 12 | 6 | 6 | 4 | 10# | |
6 | 3500 | 16 | 16 | 12 | 8 | 6 | 4 | 10# |
7 | 4000 | 16 | 16 | 10 | 8 | 8 | 4 | 10# |
SMC water tank panel standard (higher configuration) | ||||||||
S.N. | Height mm | Thickness(mm) | Channel steel for | |||||
Bottom panel | Side panel 1 | Side panel 2 | Side panel 3 | Side panel 4 | Top panel | Bottom frame | ||
1 | 1000 | 10 | 10 | 5 | 10# | |||
2 | 1500 | 10 | 10 | 8 | 5 | 10# | ||
3 | 2000 | 12 | 10 | 8 | 5 | 10# | ||
4 | 2500 | 12 | 12 | 10 | 8 | 5 | 10# | |
5 | 3000 | 14 | 14 | 12 | 8 | 5 | 10# | |
6 | 3500 | 16 | 14 | 12 | 10 | 8 | 5 | 10# |
7 | 4000 | 18 | 18 | 14 | 12 | 10 | 4 | 10# |
GRAD water tank had exported into Spain,Philippines, South Africa, Iran, Australia, Colombia, Lebanon, The united Arab emirates and so on. And it gained good honor with its high quality and good price.
