Heat Pump Air Conditioner

1.It operates efficiently within an ultra-wide ambient temperature range of -30℃ to 43℃

2. Precise frost measurement, rapid defrosting, reduced defrosting frequency, and shortened defrosting time

3. Mobile APP operation, remote control, fault warning, and online diagnosis

4. High-efficiency shell and tube heat exchange technology, water-side heat exchanger and flow protection, ultra-high energy efficiency ratio

5. It has a wide range of applications and is suitable for radiator heating, floor radiant heating, central air conditioning cooling and heating

Contact Now E-Mail Telephone WhatsApp

Product Details

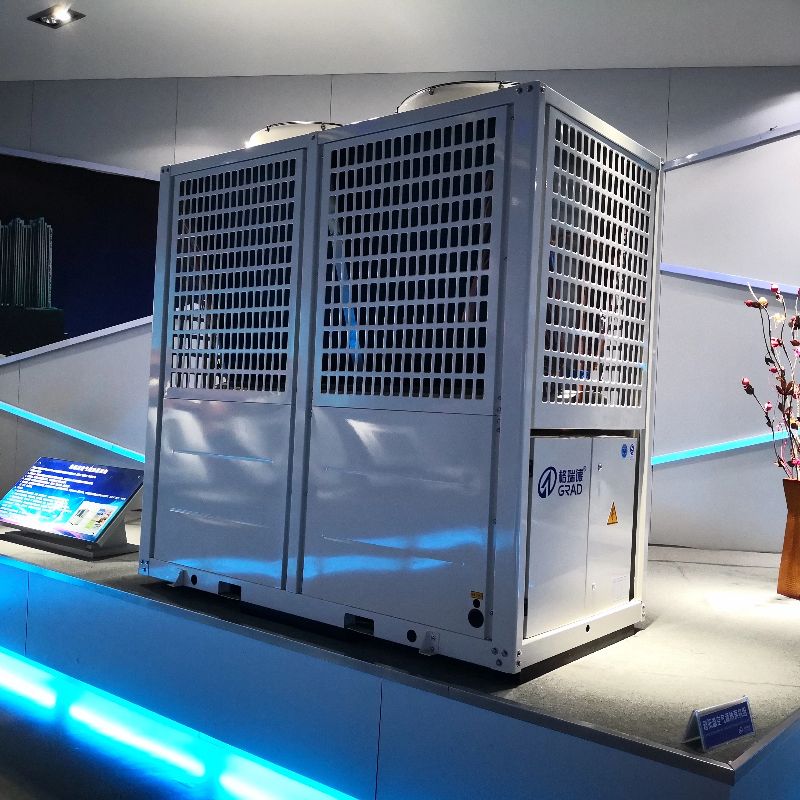

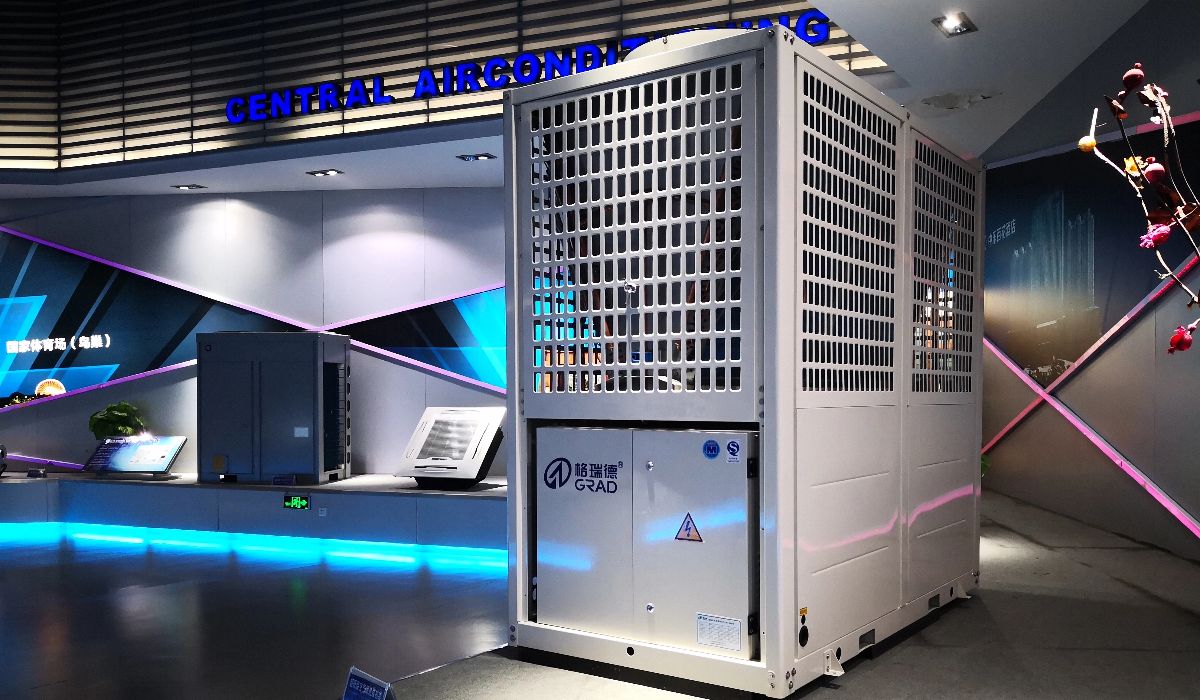

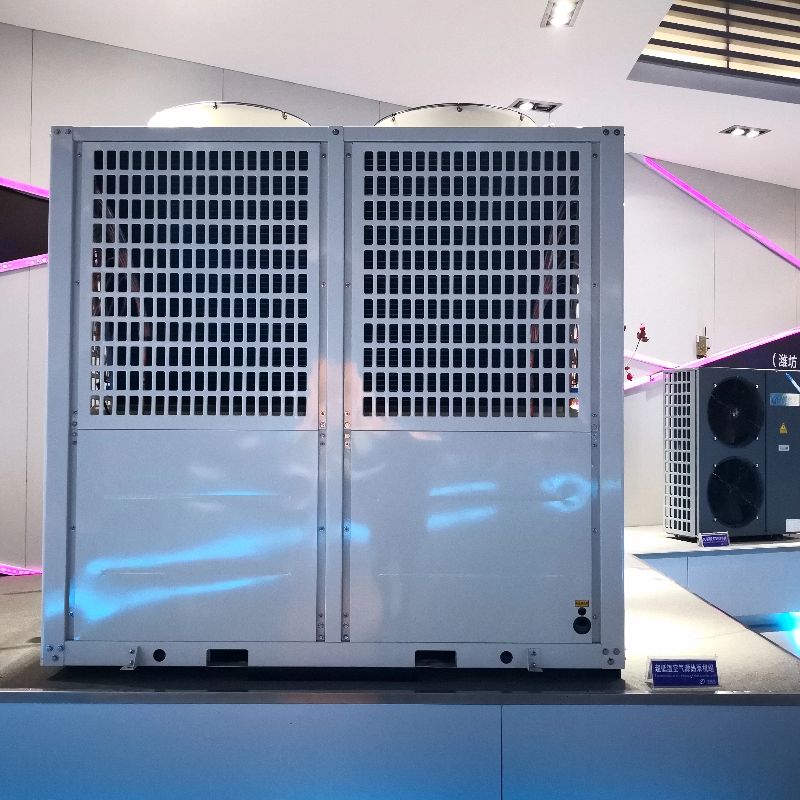

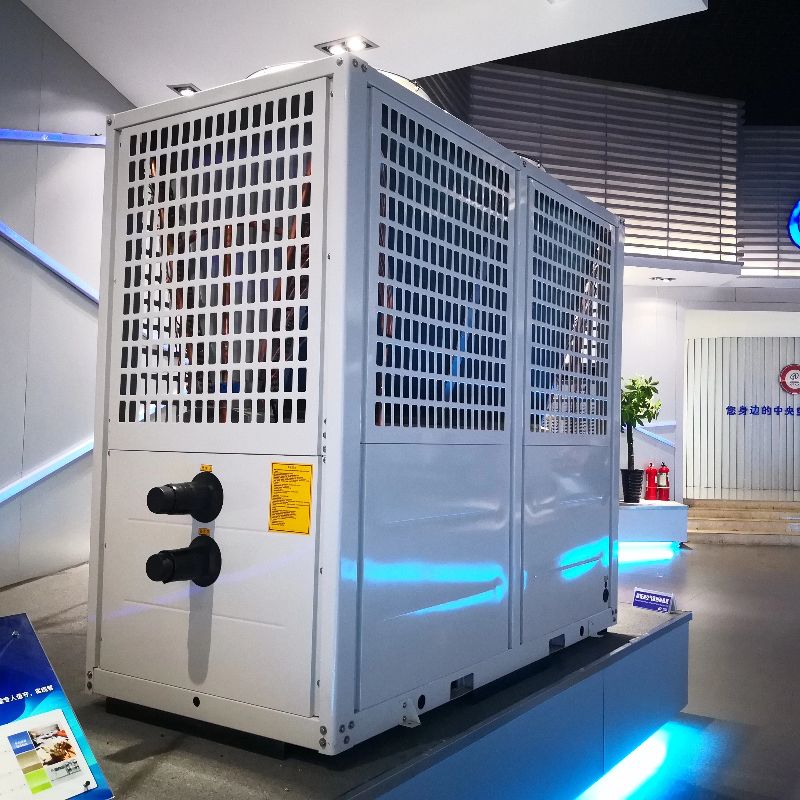

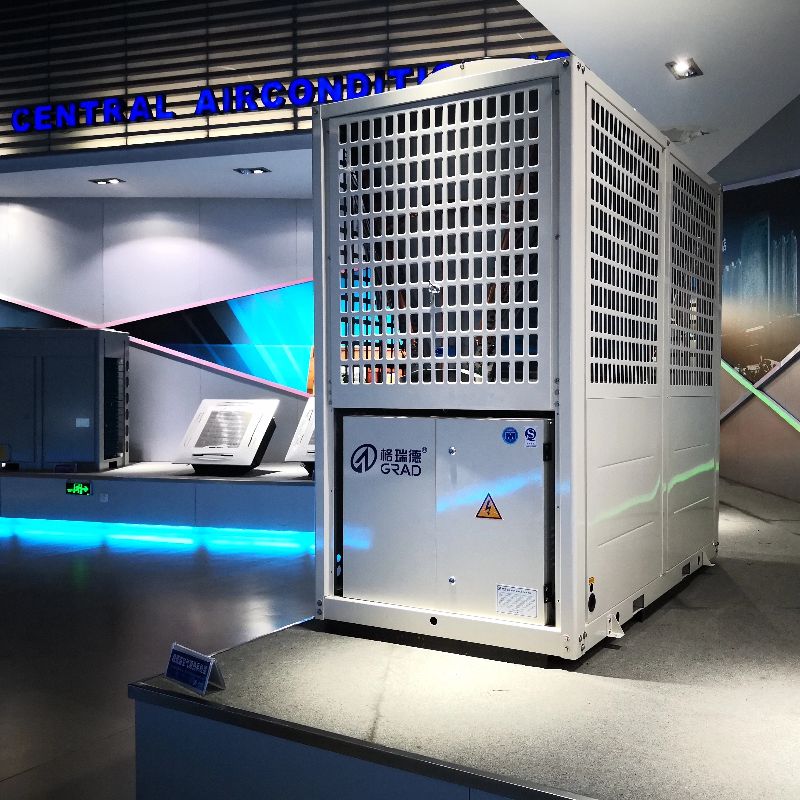

Heat Pump Air Conditioner

Heat Pump Air Conditioneris equipped with a self-developed NB-iot Internet of Things remote intelligent control module. It can be operated via a mobile phone APP, eliminating the need for dedicated personnel to stand by. It offers fault early warning prompts and online diagnosis. It can operate efficiently in an ambient temperature range of -30℃ to 43℃, with a maximum water outlet temperature of 60℃. It has various terminal forms and is suitable for radiator, floor radiant, central air conditioning cooling and heating. The national patented intelligent defrosting technology accurately detects frost, quickly defrosts, significantly reduces the frequency of defrosting, and greatly shortens the defrosting time. In addition, this unit also has unique advantages such as modular customization, no need to build a machine room, environmental protection and energy conservation, high efficiency and low noise, and wide application range.

Heat Pump Air Conditioner The GRAD air source heat pump unit adopts a modular design. The entire unit system is easy to expand and can be combined with 16 modules. The maximum capacity of the system can reach 2080 KW. It can be customized according to industrial process conditions to achieve year-round cooling or heating, meeting the needs of different processes.

Low ambient temperature air source heat pump/chiller

● Adopt the internationally leading EVI air jet high-efficiency compressor with turbine direct injection enthalpy, quasi-two-stage compression, the medium pressure gas supplement, increase the suction capacity of the compressor, improve the heating efficiency.

● The main valve and auxiliary valve are all intelligently and accurately adjusted by electronic expansion valve, and the refrigerant flow control is more accurate, improving the reliability and heat transfer efficiency of the unit.

● It can operate stably at -30℃ temperature, and is an ideal product for replacing boilers for heating in northern winter.

Heat pump unit parameter table (low temperature type)
unit type			AR40BHR	AR50BHR	AR80BHR	AR100BHR	AR160BH	AR200BHR
Normal Temperature Condition	Heating Capacity	kW	49	57	98	114	196	228
	Input Power	kW	11.1	12.9	22.2	25.8	44.4	51.6
	Water yield	L/h	1054	1225	2108	2450	4216	4900
Rated Working Condirion	Heating Capacity	kW	37	44	74	88	148	176
	Input Power	kW	10.4	12.1	20.8	24.2	41.6	48.4
	Water yield	L/h	795	946	1590	1892	3180	3784
Low Temperature Condirion	Heating Capacity	kW	28	30	52	60	104	120
	Input Power	kW	10.8	12.6	21.6	25.2	43.2	50.4
	Water yield	L/h	486	560	972	1120	1944	2240
Climatic type (Outdoor ambient temperature range)			‘-30℃~48℃
Maximum outlet temperature			60℃
Power supply specification			3N~50Hz 380V
Maximum operating current of the unit		A	30	40	60	80	120	160
Refrigerant			R410A
Waterside heat exchanger	Circulating water flow	m3/h	8.4	9.8	16.9	19.6	33.7	39.2
Waterside heat exchanger	resistance	kPa	15~40
Inlet and outlet nozzle size		DN	40	40	65	65	80	80
Overall dimension	Length	mm	1200	1200	2110	2110	2110	2110
	Width	mm	1080	1080	1080	1080	2405	2405
	Height	mm	2160	2160	2160	2160	2160	2160
Noise		dB(A)	66	67	68	69	70	70
Unit weight		kg	400	450	800	850	1600	1650

Note:

1. Normal temperature condition: ambient temperature 20℃DB/15℃WB; The initial water temperature is 15℃ and the end water

temperature is 55℃ .

2. Rated working condition: ambient temperature 7℃DB/6℃WB; The initial water temperature is 15℃ and the end water temperature is 55℃

3. low temperature conditions: ambient temperature -12℃DB/-14℃WB; The initial water temperature is 6℃ and the end water temperature is 55℃ .

4. Implementation standard: JB/T 12841

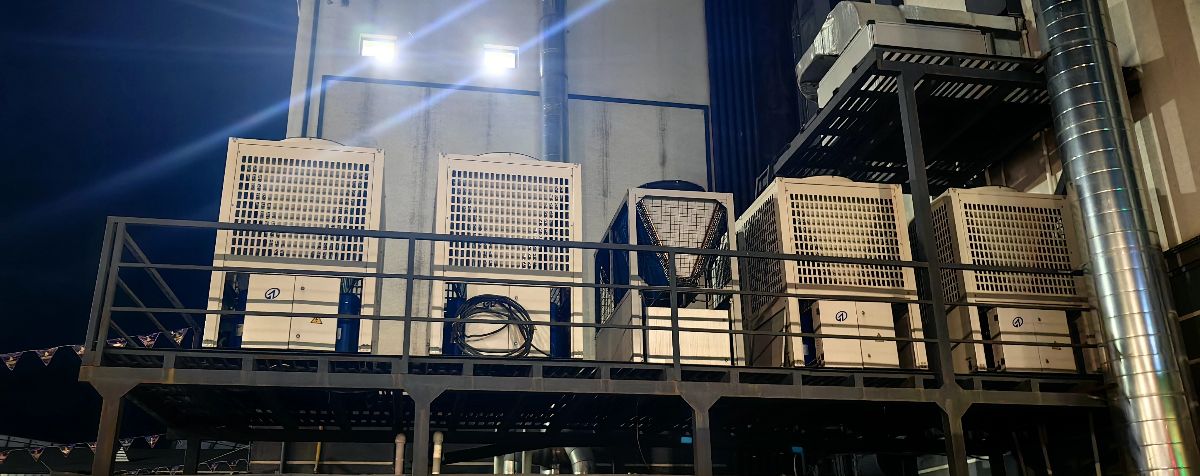

Heat Pump Air Conditioner GRAD air source heat pumps have been serving Uzbekistan for five years without any faults

About US

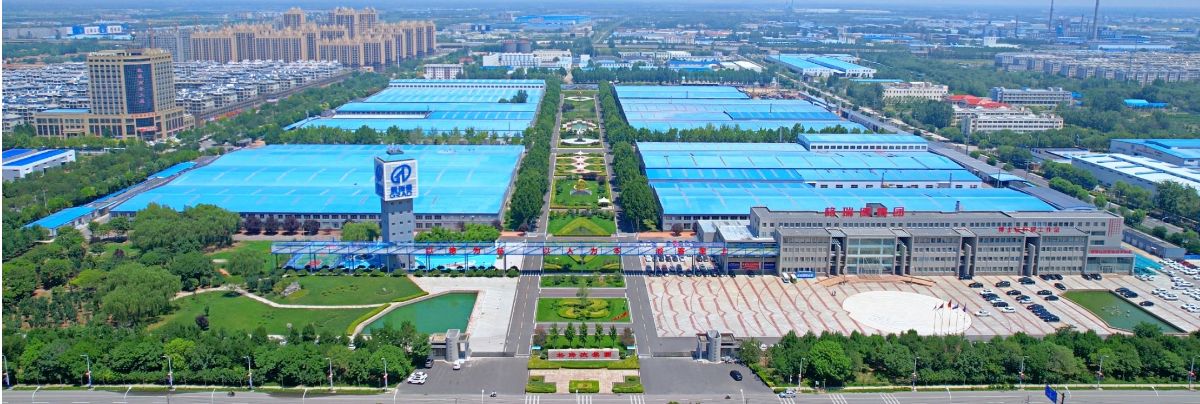

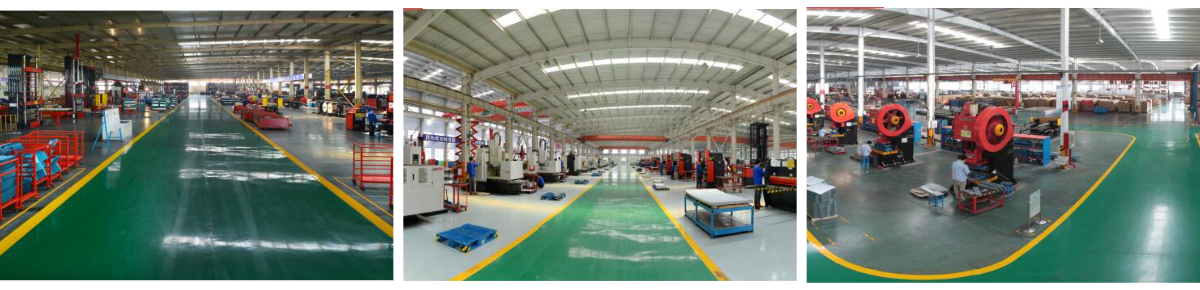

Establised in 1993, GRAD Group covers an area of 1.15 million square meters and has more than 2,000 employees, with an annual output value of nearly 4 billion yuan. GRAD Group's main business: central air conditioning chiller and terminal products, FRP water tank, FRP winding pipe, FRP storage tank, wind turbine cabin cover, environmental protection equipment, and other more than 130 varieties. GRAD Group is the pillar enterprise of the “Dezhou Central Air-Conditioning City” named by the China Refrigeration and Air-Conditioning Industry Association. It ranks the top 10 among central air-conditioning enterprises in the country, The top 3 composite material enterprises，and gets the first-class qualification for the installation of national electromechanical equipment and the second-class qualification for air purification engineering. GRAD Group can undertake central air conditioning engineering, purification engineering construction.

Heat Pump Air Conditioner

GRAD sales network covers over 100 countries and regions like America, Australia Indonesia, Malaysia, UAE, Thailand, Nigeria etc and has established branch company in USA, and set up offices in Cambodia and Thailand to make overall layout of global market.
