Glass Reinforced Plastic Tank
Why choose GRAD FRP water tank?
1.WRAS certified, reliable quality.
2.15+ years oversea installation experience, timely after-sale response.
3.31+ years FRP composite material products manufacturing experience, one-stop service for full range of water treatment products.
4.Different panel size options to meet customized capacity requirements.
5.Various steel accessories options to meet different applications.
6.Excellent agent policy to keep win-win cooperation with local agents.

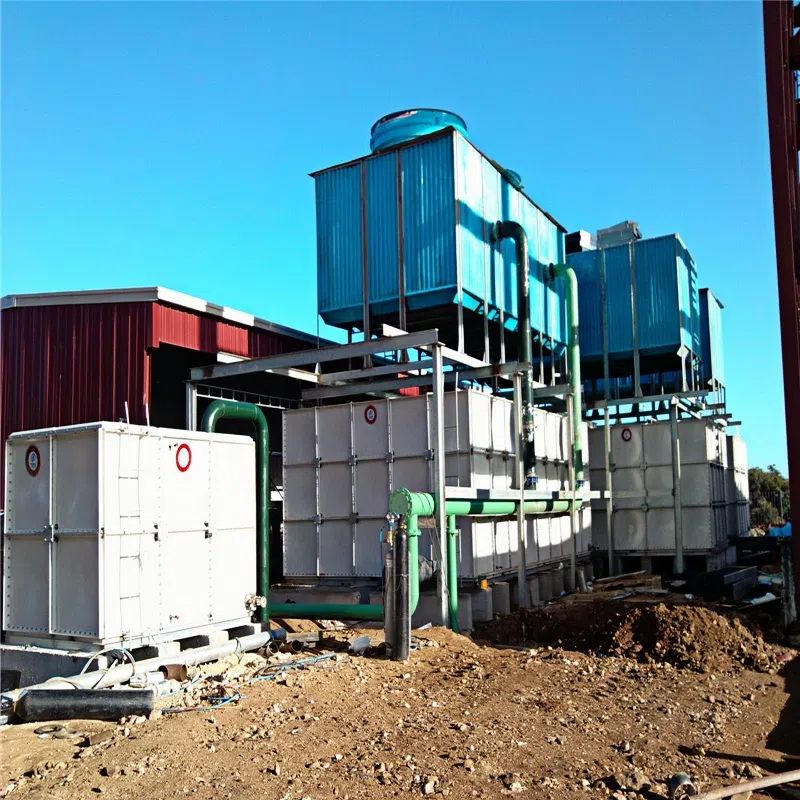

FRP Water Tank
Introduction
FRP Water Tank combination is widely used new-model watertank at present. The whole body is combined by great quality SMC slabs. It
possesses many advantages as follows: anti-corrosion, beautiful appearance, no distorsion, light weight, long service life and convenient
maintenance management, etc. It is widely used in mine industry,enterprise and public institutions, house, hotels, etc. It can also serves as the water storage facility for drinking water, sewage water, fire water, and others.
SMC water tank use food grade SMC panel which through high temperature, high pressure and mechanical molding. The size specification has: 1*1m, 1*0.5m, 0.5*0.5m. We can assemble any volume you need. They meet the "water standard for domestic living" (GB5749-85). No distortion, no leakage, high tensile strength, easy to maintain and repair, cost saving, long-term use.
FRP water tank is light in weight,non-corrosive,non-leakage,good water quality,application range wide,long service life,good heat preservation performance,easy to clean and maintain,and highly applicable.It is an ideal product for public living water,fire fighting water and industrial water storage facilities.It has beautiful appearance,convenient construction,easy assembly and disassembly, and the structure of the panel adopts a cross shape.Compared with the steel water tank and the concrete water tank,it has its own characteristics and creativity.Although the initial investment of the combined water tank is higher than that of the traditional water tank,it has the advantages of small self-weight,convenient installation,easy maintenance and so on,so it is welcomed by the customers.
Application
1. Construction & fire-fighting water supply
2. Water storage pool
3. Water supply for living and production of industry, mining and enterprise
4. Water circulation system, chilling water and hot water supply system
Panel size and thickness
2000*1000mm,(Thickness included:4mm,5mm,6mm,7mm,8mm,9mm,10mm,12mm,)1000*1000mm,1000*500mm,500*500mm
(Thickness included 4mm,6mm,8mm,10-22mm;4mm water tank panel is specially designed as water tank cover).
SMC water tank panel standard (low configuration) | ||||||||
S.N. | Height mm | Thickness(mm) | Channel steel bottom frame | |||||
Bottom panel | Side panel 1 | Side panel 2 | Side panel 3 | Side panel 4 | Top panel | |||
1 | 1000 | 8 | 6 | 4 | 10# | |||
2 | 1500 | 8 | 6 | 6 | 4 | 10# | ||
3 | 2000 | 8 | 6 | 6 | 4 | 10# | ||
4 | 2500 | 12 | 12 | 8 | 6 | 4 | 10# | |
5 | 3000 | 12 | 12 | 6 | 6 | 4 | 10# | |
6 | 3500 | 16 | 16 | 12 | 8 | 6 | 4 | 10# |
7 | 4000 | 16 | 16 | 10 | 8 | 8 | 4 | 10# |
SMC water tank panel standard (higher configuration) | ||||||||
S.N. | Height mm | Thickness(mm) | Channel steel for | |||||
Bottom panel | Side panel 1 | Side panel 2 | Side panel 3 | Side panel 4 | Top panel | Bottom frame | ||
1 | 1000 | 10 | 10 | 5 | 10# | |||
2 | 1500 | 10 | 10 | 8 | 5 | 10# | ||
3 | 2000 | 12 | 10 | 8 | 5 | 10# | ||
4 | 2500 | 12 | 12 | 10 | 8 | 5 | 10# | |
5 | 3000 | 14 | 14 | 12 | 8 | 5 | 10# | |
6 | 3500 | 16 | 14 | 12 | 10 | 8 | 5 | 10# |
7 | 4000 | 18 | 18 | 14 | 12 | 10 | 4 | 10# |

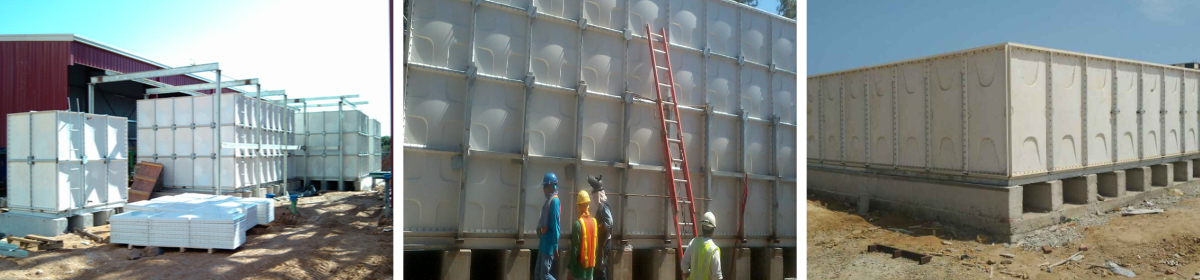

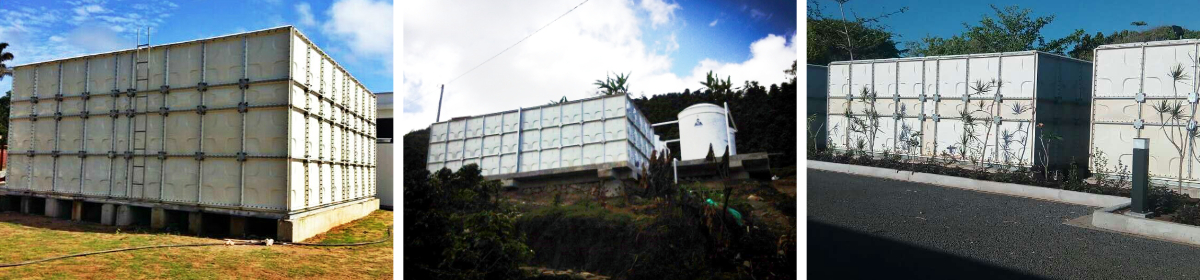

GRAD water tank had exported into Spain,Philippines, South Africa, Iran, Australia, Colombia, Lebanon, The united Arab emirates and so on.
And it gained good honor with its high quality and good price.
About us
GRAD sales network covers over 100 countries and regions like America, Australia Indonesia, Malaysia, UAE, Thailand, Nigeria etc and has established branch company in USA, and set up offices in Cambodia and Thailand to make overall layout of global market.

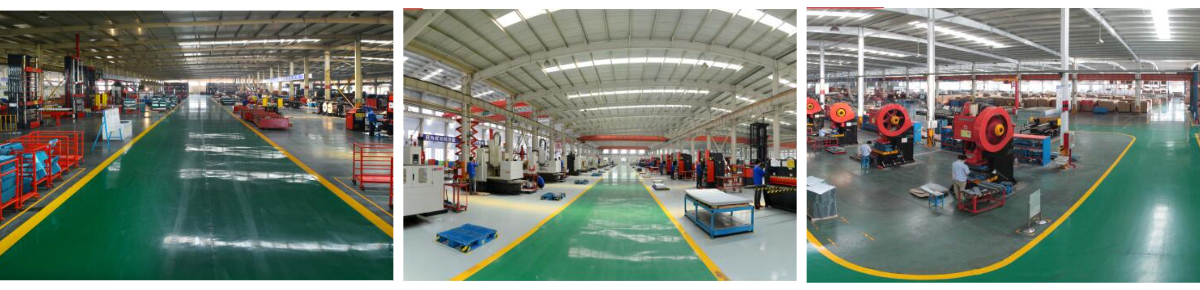

Shandong GRAD Group Co.,Ltd. is established in 1993, located in Dezhou Shandong,covering an area of 700 thousand square meters, with more than 2500 employees. The total capital is 925 million RMB, and annual output value over 2.5 billion RMB. During 30 years' development, GRAD Group concentrates on the central air-conditioning and compound material products and show the world a high technological
enterprise combining construction budget, technical consultation, products design, Manufacturing and debugging service. There are 10 series, over 130 kinds of products covering the whole central air-conditioning series and the compound materials series products. The high
standard workshop covering 350 thousand square meters.
Before-sale services:
(1) Tell customers how to use our products and matters needing attention.
(2) Guide customers to choose the best and economic product, recover the investment within short time.
(3) Site inspection if you need.
In-Sale services:
(1)Quality control must be inspected strictly.
(2)In accordance with the agreements stipulated in the contract.
After-sale services:
(1) If the project needs our installation guidance, we can send our engineer and translator. We can also send customers installation video to teach them how to fix and operate with our product.
(2) Usually, our product warranty is 18 months after leaving factory or 12 months after installation. within this months, all parts broken will be responsible for our factory.
(3) Regular contact with customer, consult with the customer feedback, come true with the customer's two-way communication.
