Chiller Fan Coil
FCU product
Chiller Fan Coil are ideal terminal products for central air conditioning. Fan coil units are one of the terminal devices of air conditioning systems, composed of small fans, motors, and coils, etc. When chilled water or hot water flows through the coils, it exchanges heat with the air outside the coils, cooling, dehumidifying or heating the air to regulate the indoor air parameters. It is mainly used as a terminal device for cooling and heating in application
Product function
1)Low noise.
2)Easy installation.
3)Special design of air filter.
4)Air flows: 180 to 3400m3/h.
5)Cooling capacity range: 1.6 to 17.6kW.
6)Power supply: 220V, 50HP, and 1pH depends on the different country.
7)Used for: Industry, hotel, commercial building, etc.
8)Function: cooling only, cooling and heating.
9)Test condition for rated refrigerating output of fan coil unit.
10)Temperature of dry ball: 27℃ Temperature of wet ball: 19.5℃ Temperature of inlet water: 7℃ Temperature difference between inlet water and outlet water: 5℃
11)Test condition for rated heating output of fan coil unit: Temperature of dry ball: 21℃ Temperature of inlet water: 60℃ Rated water volume is same as in test condition of rated refrigerating output Items marked with refers to single-shaft motor.

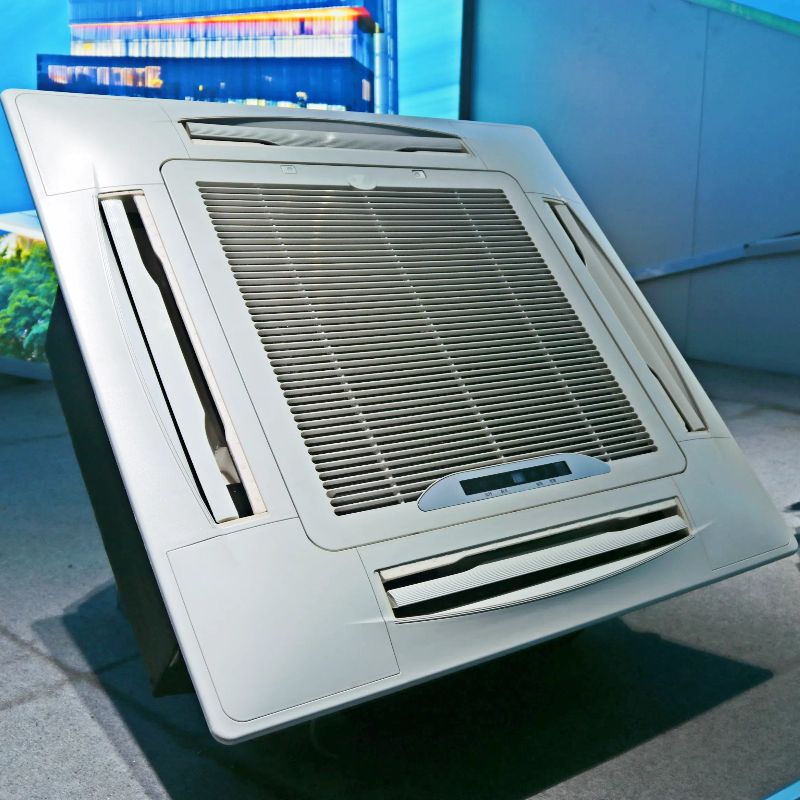

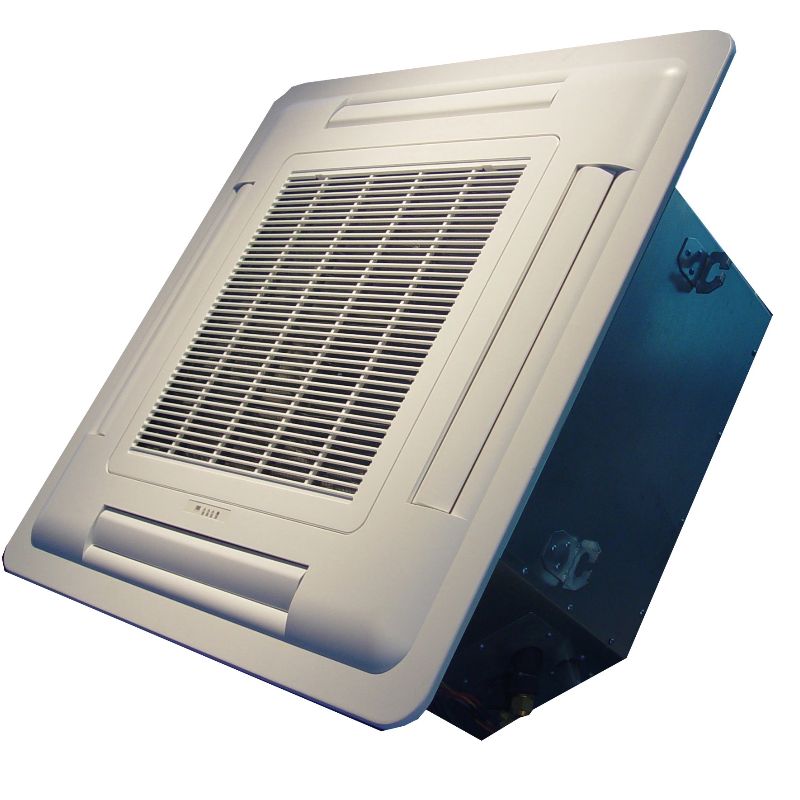

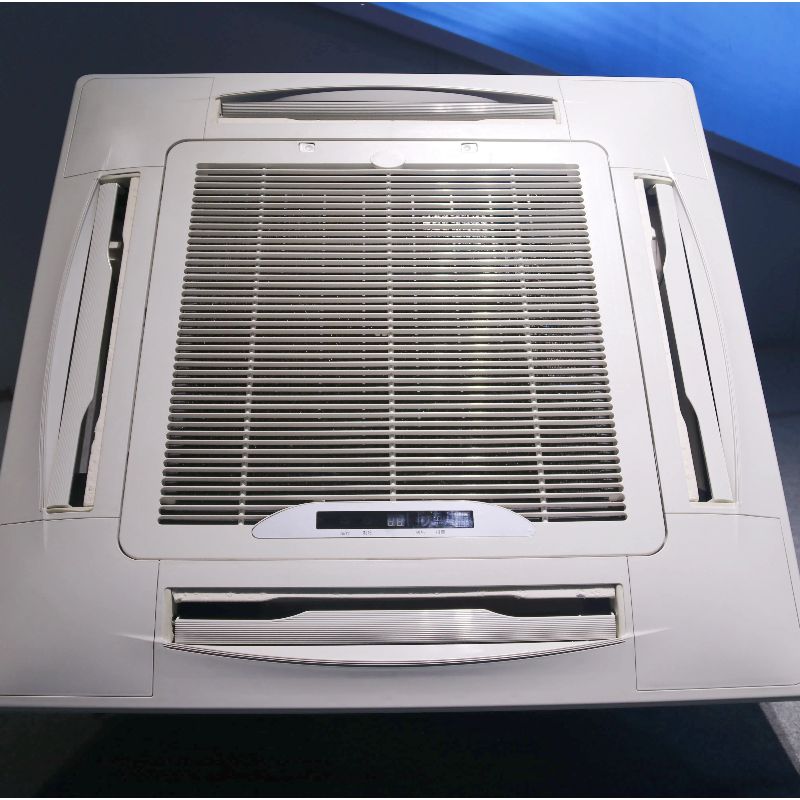

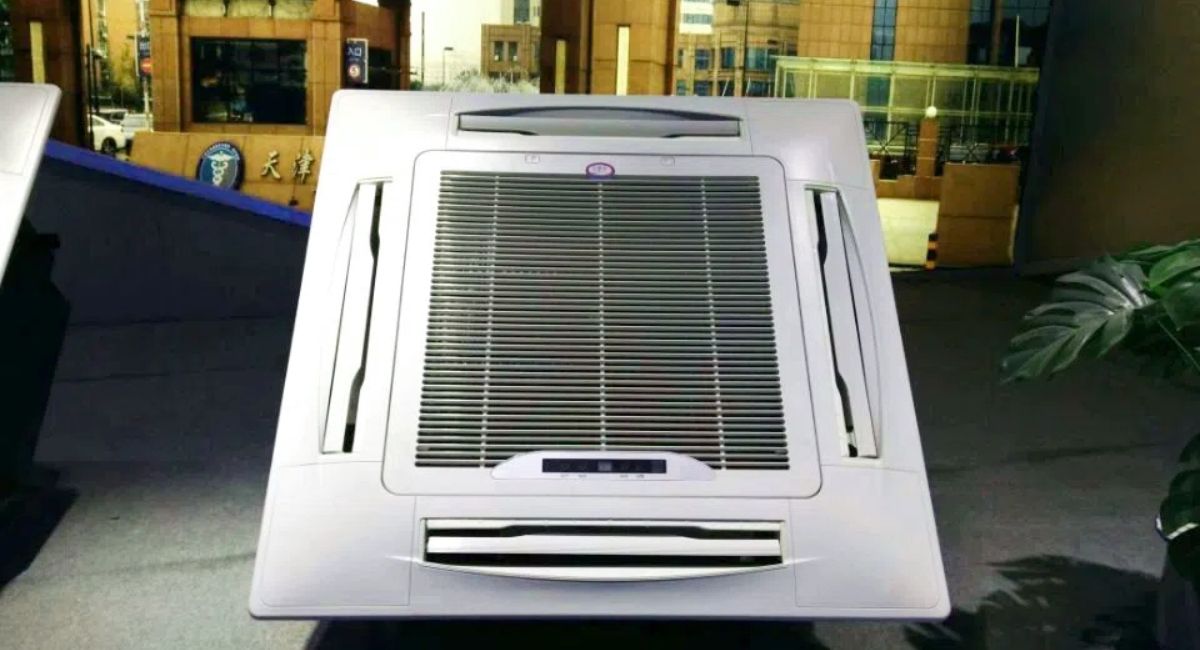

FP-KM Cassette type

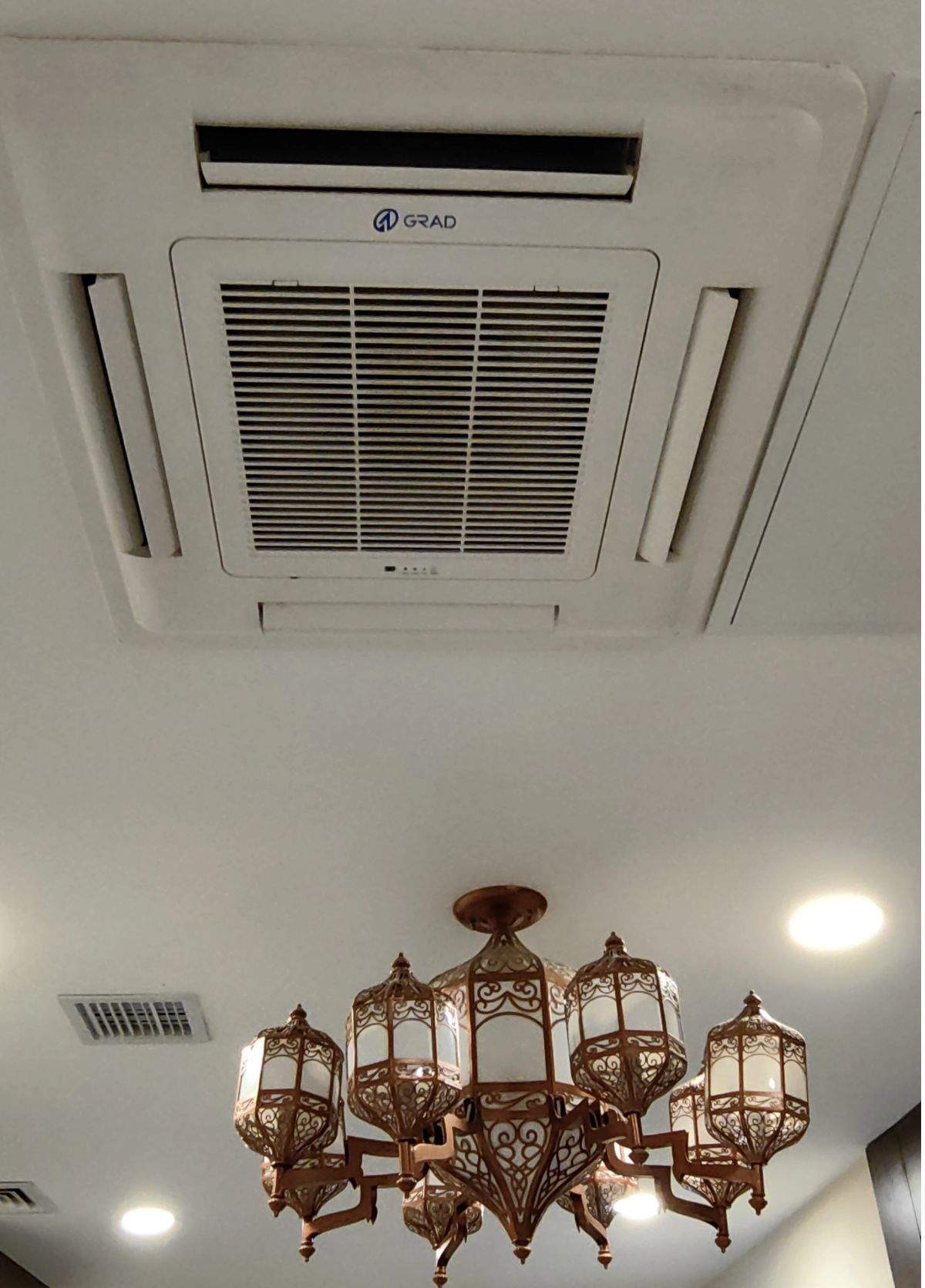

This unit can be put into the ceiling ideally. Combined with the indoor decoration, there will be only air vent exposed on the ceiling. The air vent is elegant and it will cover no space. So it is easy to maintain and mend
Specifications
Function:Heating and Cooling
Coil:Seamless copper tubes
Application:For building offices, hotels, resterants, theaters, etc
Advantages:Low noise, high quality, nice outlook, etc
Model:FPKM4-V/A | FP-34KM4-V/A | FP-51KM4-V/A | FP-68KM4-V/A | FP-80KM4-V/A | FP-85KM4-V/A | FP-102KM4-V/A | FP-136KM4-V/A | FP-170KM4-V/A | FP-204KM4-V/A | FP-238KM4-V/A | FP-289KM4-V/A | FP-340KM4-V/A | ||
Air Volume (m³/h) | H | 340 | 510 | 680 | 800 | 850 | 1020 | 1360 | 1700 | 2040 | 2380 | 2890 | 3400 | |
M | 280 | 390 | 520 | 580 | 640 | 790 | 1030 | 1290 | 1500 | 1800 | 2100 | 2600 | ||
L | 180 | 260 | 350 | 390 | 430 | 520 | 690 | 860 | 1030 | 1200 | 1600 | 1900 | ||
Cooling | Total capacity (Kw) | H | 2 | 2.7 | 3.7 | 4.2 | 4.5 | 5.6 | 7 | 9.1 | 10.8 | 12.6 | 15.3 | 17.6 |
M | 1.8 | 2.3 | 3.1 | 3.8 | 4.2 | 4.3 | 5.7 | 7.9 | 8.6 | 10 | 11.7 | 13.5 | ||
L | 1.6 | 1.8 | 2.6 | 2.8 | 3 | 3.6 | 4.5 | 6 | 6.8 | 8 | 9.3 | 9.9 | ||
Sensible capacity (Kw) | H | 1.5 | 1.9 | 2.6 | 2.9 | 3.5 | 3.9 | 5 | 6.4 | 7.7 | 9 | 11.5 | 14.8 | |
M | 1.3 | 1.7 | 2.0 | 2.6 | 3.2 | 3.3 | 4.3 | 5.9 | 6.5 | 7.5 | 8.4 | 11.1 | ||
L | 1.2 | 1.4 | 1.8 | 1.9 | 2.8 | 2.9 | 3.6 | 4.8 | 5.4 | 6.4 | 6.4 | 7.8 | ||
Water flow rate (l/h) | 345 | 470 | 640 | 720 | 780 | 970 | 1260 | 1710 | 1920 | 2160 | 2640 | 3027 | ||
Water pressure drop (Kpa) | 7 | 9 | 11 | 14 | 16 | 18 | 19 | 17 | 19 | 22 | 36 | 48 | ||
Heat | Heating Capacity (Kw) | H | 2.8 | 4.2 | 5.8 | 6.3 | 7 | 8.4 | 11.2 | 13.9 | 16.7 | 19.5 | 23.7 | 25.5 |
M | 2.5 | 3.4 | 4.5 | 5.5 | 6.3 | 6.5 | 8.5 | 12 | 12.6 | 15.6 | 17.5 | 18.6 | ||
L | 2 | 2.7 | 4 | 4.5 | 5 | 5.2 | 6.7 | 9 | 10.2 | 12 | 13.8 | 13 | ||
Power Supply | 220-240V/1PH/50HZ(or 60HZ) | |||||||||||||
Power Input (W) | 39 | 52 | 62 | 68 | 76 | 96 | 132 | 152 | 189 | 220 | 330 | 340 | ||
Sound pressure dB(A) | 37 | 39 | 41 | 42 | 43 | 45 | 46 | 47 | 50 | 52 | 57 | 65 | ||
Fan | Type | Centrifugal fan | ||||||||||||
Model | ∅315 | ∅315 | ∅315 | ∅315 | ∅380 | ∅380 | ∅380 | ∅476 | ∅476 | ∅476 | ∅530 | ∅530 | ||
Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
Motor | Type | 3-speed motor | ||||||||||||
Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
Coil | Coil rows | Nr. | 2 | |||||||||||
Max.Working pressure | Mpa | 1.6 | ||||||||||||
Tuber Diameter | inch | 3/8'' | ||||||||||||
Dimensions | Unit body | mm | 580x580x250 | 705x705x290 | 832x832x290 | 960x960x290 | ||||||||
Panel assembly | mm | 680x680x30 | 830x830x30 | 980x980x30 | 1140x1140x30 | |||||||||
Connection | Water inlet/outlet pipe | inch | ZG3/4'' | |||||||||||
Condensate discharge | inch | 26 | ||||||||||||
Weight (with feet,with casing) | KG | 20 | 25 | 34 | 52 | 50 | ||||||||
