International Fan Coil Units
※Ultra-efficient
Energy efficiency exceeds the national standard by more than 15%
※Low noise
The noise is 1 to 2dB lower than the national standard
※Large air volume
It has a wide range of air volume, with a maximum air output of 3400m ³ /h
※More beautiful
With a national patent for appearance, the unit is lightweight and aesthetically pleasing as a whole
※High cost performance
A wide variety, customizable, and with an extremely high cost performance
International Fan Coil Units
Product Introduction
Fan coil units are ideal terminal products for central air conditioning. Fan coil units are one of the terminal devices of air conditioning systems, composed of small fans, motors, and coils, etc. When chilled water or hot water flows through the coils, it exchanges heat with the air outside the coils, cooling, dehumidifying or heating the air to regulate the indoor air parameters. It is mainly used as a terminal device for cooling and heating in application
Application
GRAD fan coil units are widely used in hotels,restaurants,factories,hospitals,exhibitions,shopping malls and office buildings.
Structures and specification

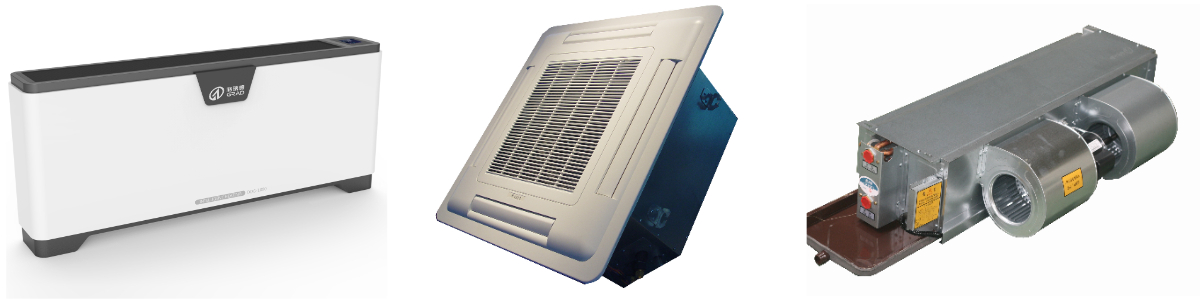

1.There are five kinds of fan coil according to different structures,horizontal concealed,horizontal exposed,vertical concealed,vertical exposed and cassette.
2.There are different models to meet clients’ requirements according to different air volume and cooling capacity.
You can through the following table to choose the appropriate model , if you have any question, please feel free to contact us.
Installation and use instructions
1、Vertical unit installed in a horizontal plane, maintain vertical, shall not be tilted；Keep the unit level when horizontal installation to prevent water overflow
2、Inlet and outlet piping valves should be installed to facilitate maintenance
3、Unit 3 speed, opens from high-grade start, and then select the other class.
4、Not less than 7 ℃ cold water temperature in summer,Hot water temperature is not higher than 80 ℃ in winter.
5、The biggest allows the use of pressure 1.6 MPa.
6、Filters and heat exchanger need regular cleaning.
7、You should be cut off power supply before maintenance.
Order requirement
We will appreciate it a lot if you can offer us your product performance requirements and operation environment, so that we can customize optimal production to meet your every requirement.
1.Air volume
2.The amount of cooling/heating loads
3.Cooling/heating area
4.Power and voltage
| Product Name | Floor standing Fan coil unit | ||||||||
| Model No. | FP-34LM | FP-51LM | FP-68LM | FP-85LM | FP-102LM | FP-136LM | FP-170LM | FP-204LM | FP-238LM |
| Air Volume (m³/h) | 340 | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | 2380 |
| Cooling Capacity(kw) | 1.8 | 2.7 | 3.6 | 4.5 | 5.4 | 7.2 | 9 | 10.8 | 12.6 |
| Heating Capacity(Kw) | 2.7 | 4.05 | 5.4 | 6.75 | 8.1 | 10.8 | 13.5 | 16.2 | 18.9 |
| Power Supply | 220V/1PH/50Hz | ||||||||
| Power Input (W) | 36 | 50 | 60 | 74 | 93 | 130 | 147 | 183 | 221 |
| Noise (dB) | 37 | 39 | 41 | 43 | 45 | 46 | 48 | 50 | 52 |
| Water volume(kg/h) | 310 | 470 | 620 | 780 | 930 | 1240 | 1550 | 1860 | 2170 |
| Water resistance(kPa) | ≤30 | ||||||||
| Weight(kg) | 27 | 32 | 33.5 | 36 | 39 | 52 | 61.5 | 64.5 | 67.5 |
| Water Plate | Iron plate with paiting and insulated | ||||||||
| Maximum working pressure(MPa) | 1.6 | ||||||||
| Inlet and Outlet water pipe | Rc 3/4" (DN20) internal thread ，DN20 | ||||||||
| Condensate pipe | R2 3/4" (DN20) internal thread ，DN20 | ||||||||
About us

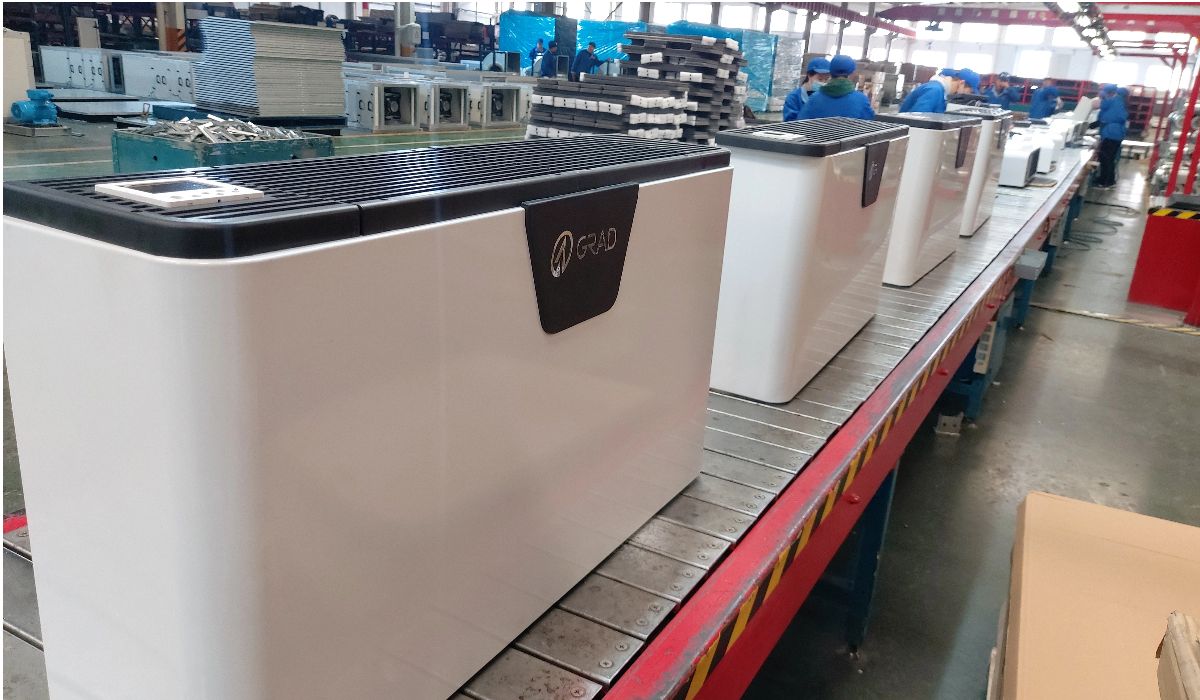

GRAD Group devotes itself to be a central air conditioning customization expert around you and provides you a comprehensive energy solution, GRAD possesses national mechanical and electrical equipment installation Class I qualification and purification equipment installation Class II qualification. GRAD has the overall project contacting ability. It has contracted national class and provincial class technology research projects for many times. The accumulated patents for technolog achievements has passed 110 items. There are more than 300 senior engineers available for central air conditioning design and solution. The 700,000 ㎡ manufacturing base includes the whole central air conditioning series: from chiller to terminal products. The high efficient falling film centrifugal chiller maintains domestic leading position and the large fan wall air handling unit has filled domestic blank and been listed in the national torch plan. GRAD has the national class air conditioning testing center and has passed CNAS certification. The products quality can be well guaranteed. Some of projects gained China Construction Project Luban Prize and National High Quality Project. At the same time, GRAD has established more than 30 offices all over China, such as Beijing, Tianjin, Shenyang, Xi’an, Wuhan, Nanjing, etc. The sales, design, installation and after sales network has covered every corner of China. Moreover, its products have been exported to more than 100 countries.

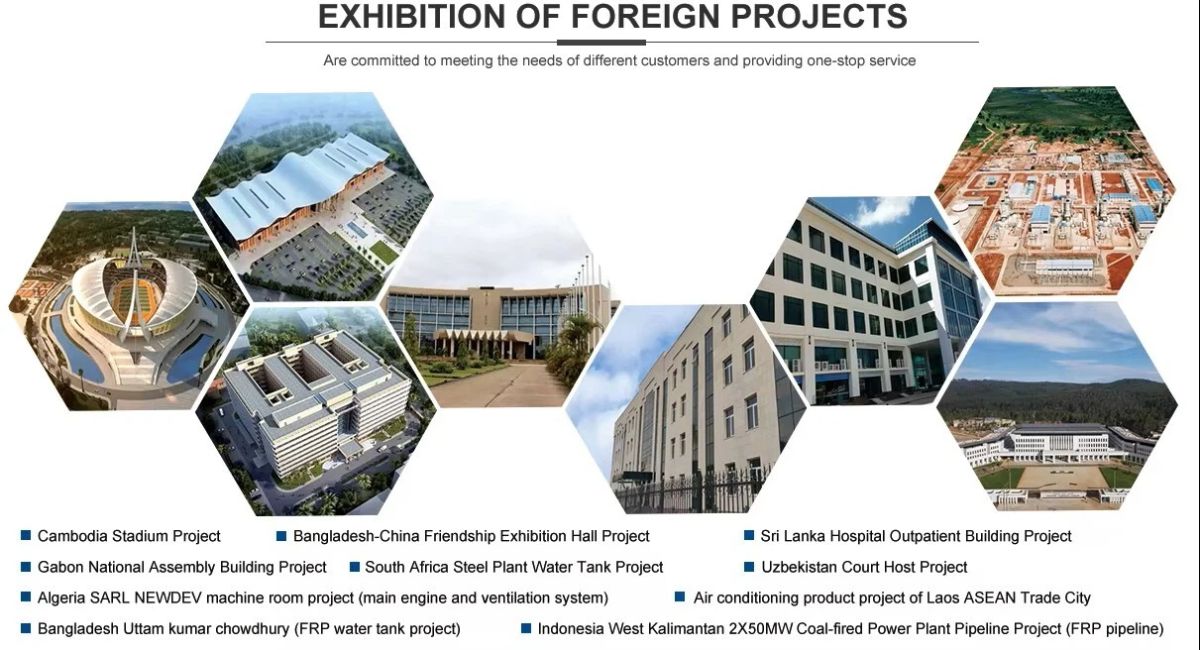

GRAD sales network covers over 100 countries and regions like America, Australia Indonesia, Malaysia, UAE, Thailand, Nigeria etc and has established branch company in USA, and set up offices in Cambodia and Thailand to make overall layout of global market.
FAQ
Q1. Where is your loading port?
A: Qingdao/Shanghai/Tianjin, China or else port as for your request.
Q2. What's your company's main products?
A: Our company is specialized in central air-conditioning,ventilation and GRP Composite material products.
Q3. What’s your payment term.
A:T/T,30% deposit,70% before delivery or 100% Irrevocable L/C at sight.
Q4. What’s your Warranty.
A:Warranty for 12 months from the date of shipment from the factory.
